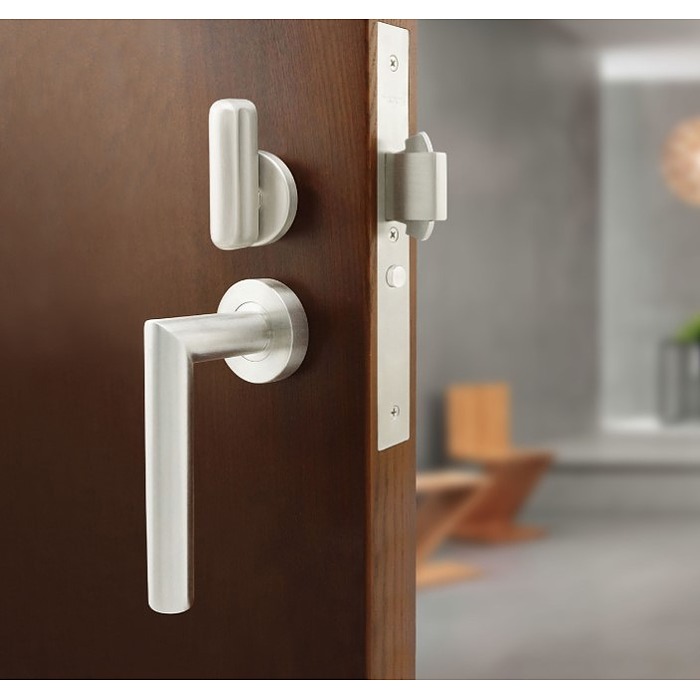

Inox XGT205-PD9640-PVD4-LH

Special Order Privacy Sliding Door Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: XGT205-PD9640-PVD4-LH

The PD9640 is an auto-latching sliding door lock, privacy function.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Privacy with Indicator, Function 40
  • Actuator button on faceplate contacts strike and automatically engages deadbolt when sliding door closes
  • Outside lever is rigid when locked and cannot retract deadbolt
  • Outside lever can retract deadbolt when unlocked
  • Inside thumbturn can lock or unlock outside lever
  • Outside coin turn emergency release can also unlock outside lever
  • Operating inside lever to retract deadbolt simultaneously resets outside lever and inside thumbturn to unlocked position
  • Inside lever can always retract deadbolt for emergency egress

Product at A Glance

Compliance:
  • ANSI A117.1 Accessibility Code (ADA Compliant)
  • Meets and exceeds ANSI/BHMA 156.36 Grade 1 Auxiliary Hardware standard
  • UL1784 Standard for Safety Air Leakage test of Door Assemblies and Openings

Specifications:
  • XGT205 Frankfurt Lever
  • Backset: 2-3/4"
  • Finish: PVD4, 606 Satin Brass
  • GR04 Standard Thumb Turn
  • Left Hand handing
