Ives 7226-INT-26D

3/4" Offset Full Mortise Intermediate Pivot

Quick Product Details

  • Intermediate Pivot
  • Offset
  • Full Mortise
Price: $131.00 /each

SKU: 7226-INT-26D

Choose Options Below

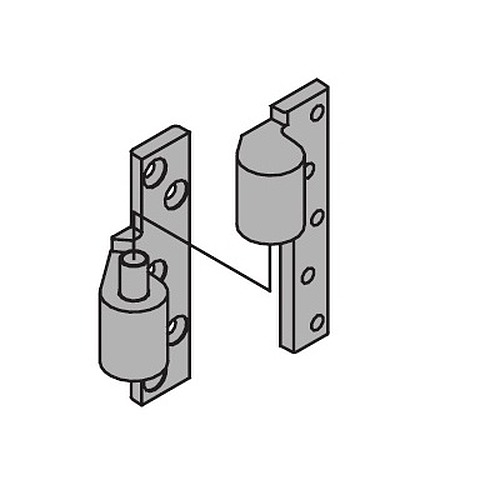

This Ives 7226INT is a 3/4" offset intermediate pivot. It is non load-bearing, maintains door alignment and get fully mortised into the door.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $131.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview


Quality and Safety:
  • UL listed 20 minute fire doors
  • Meets ANSI/BHMA A156.4 C07321.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Full mortise
  • Positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
  • Vertical adjustment range is 3/16", includes positive locking.
  • Use for door heights over 7'0". Use an additional intermediate pivot for every 2'6".
  • Not load-bearing
  • Maintains door alignment
  • Furnished with stainless steel machine screws and wood screws.
Style Intermediate Pivot
Used With 7215, 7226 or 7227 3/4" Offset Pivot sets
Application Offset
Offset 3/4"
Handing Handed
Door Thickness Minimum 1-3/4" with 1/8" bevel in 2"
Finish Satin Chrome

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
