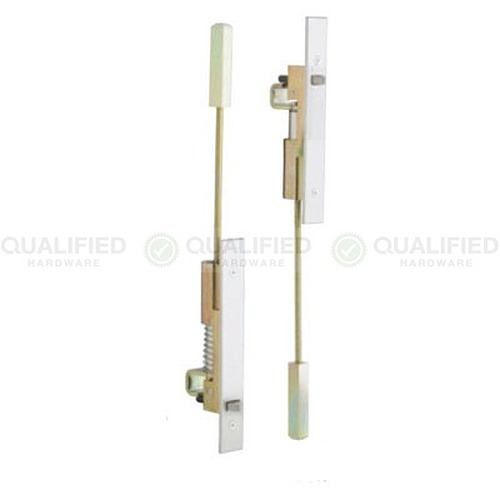

Ives FB31P-12-MD-US10B

Special Order FB31 Automatic Flush Bolt

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: FB31P-12-MD-US10B

Choose Options Below

Ives automatic flush bolts are for use on the inactive door in a pair of doors. Closing the active door pushes in the triggers, locking the inactive door at the top and bottom. When the active leaf is opened, the automatic flush bolts retract. Automatic flush bolts are sold as a pair and supplied in a US10B dark bronze finish. An Ives COR7G or COR9G door coordinator is recommended to insure that the inactive door closes first.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Bottom Strike:

No Special Bottom Strike

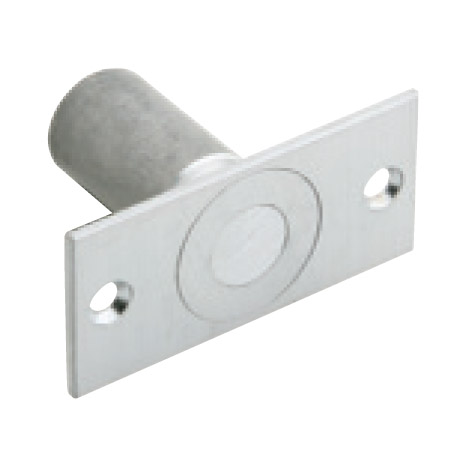

Add DP2 Dust Proof Strike + $20.00 Add DP2 Dust Proof Strike +$20.00

Overview

Special order non stock item with 4 week lead time

Automatic flush bolts are fully automatic - the inactive door is latched, with bolts extended when the active door closes.
  •  Low Actuation Forces—Top Bolt Has No Spring Tension.
  • This product is intended for installation in metal doors.
  •  Fits standard ANSI A115.4 Door Frame Preparations.
  • US10B dark bronze finish.
  • Non-handed.
  • Body size: 1" wide x 6-3/4" long x 2" deep.
  •  Bolt throw is 3/4" with a 7/8" vertical adjustment.
  •  Bolt backset is 3/4"
  •  Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.

This product is intended for installation in metal doors.

Available Options: Choose Options Above

  • Bottom Strike:

    • No Special Bottom Strike
    • Add DP2 Dust Proof Strike

More Info

  • Meets ANSI A156.3 Type 25.
  • UL Listed for 3 Hour Fire Doors 8'0" x 10'0"
