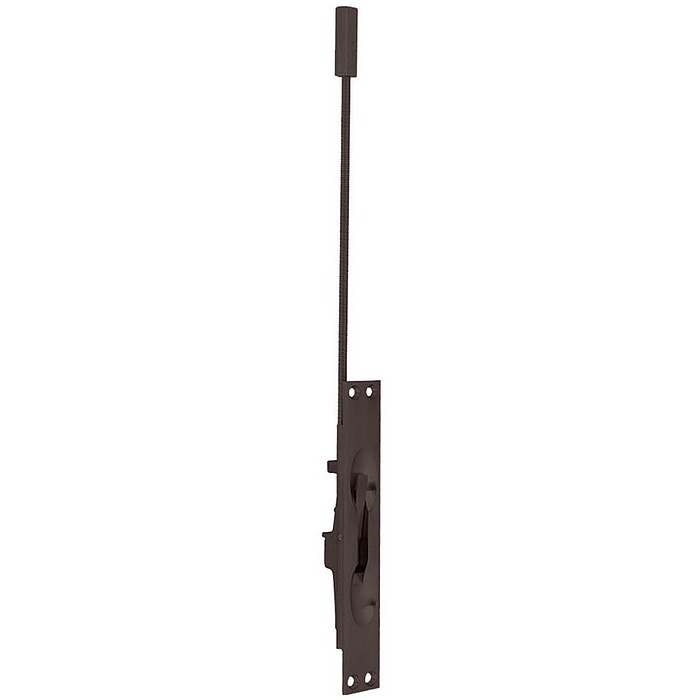

Ives FB458-12-10B (Pair)

Pair Manual Flush Bolt

Quick Product Details

  • Pair of Manual Flush Bolts
Price: $39.00 /each

SKU: FB458-12-10B (Pair)

Ives manual flush bolts are for use on the inactive door in a pair of doors. When the active leaf is open, the lever can be moved to extend or retract the bolt. These manual flush bolts are sold as a pair and supplied in a 10B/613 finish. Other finishes are available to order. Optional rod lengths are also available.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?


Manual flush bolts are extended or retracted by hand when the active door is open.
  • Standard rod length is 12", which is measured from the center of the flush bolt body to the bolt tip.
  • Non-handed
  • Bolt tip is 1/2" diameter
  • Bolt throw is 3/4" with a 7/8" vertical adjustment
  • UL Listed 3 hour fire doors 8'0" x 10'0"
  • Dark Bronze finish
This product is intended for installation in metal doors.

More Info

  • Body Size: 1" Wide x 6-3/4" Long x 1-1/8" Deep
  • Guide size: 1" Wide x 2" Long x 5/64" thick
  • Strike size: 15/16" x 2-1/4" x 5/64" thick
  • Bolt backset is 3/4"
  • UL Listed for 3 Hour Fire Doors - 8'0" x 10'0"
