LCN 1461-REG-633

Special Order Adjustable Commercial and Institutional Door Closer

Quick Product Details

Adjustable Door Closer

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 1461-REG-633

Choose Options Below

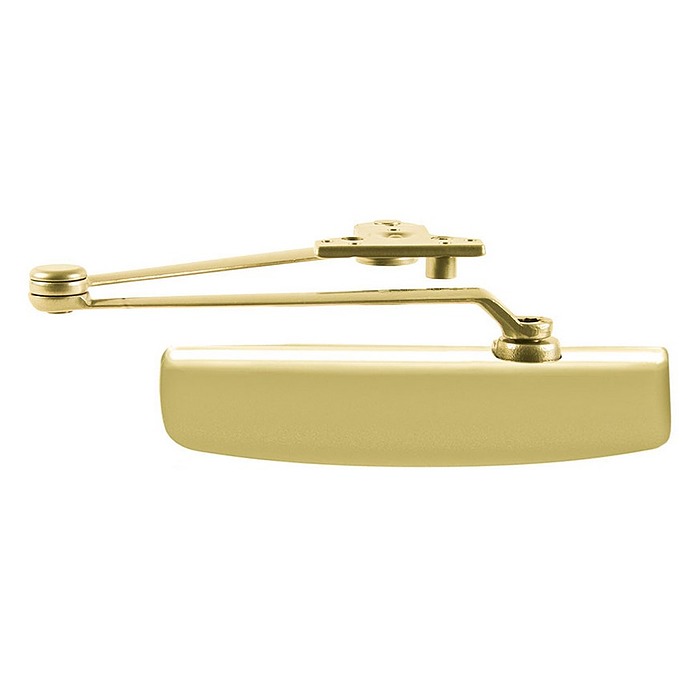

This LCN 1461 is an adjustable commercial and institutional door closer. Its adjustable spring size makes this closer versatile to accommodate nearly all installations without any major adjustments. Special order with DS Metal Cover and 633/US4 finish

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

or for better pricing

Price: $612.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Arm:

REGULAR ARM

Help Me Decide

Hold Open - A door closer arm with the capability of holding the door in the open position until manually closed. Hold Open arm door closers are not permitted to be used on fire door assemblies
Parallel Arm - Arm is mounted on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, in most situations, there is very little or no hardware projecting beyond the frame face. This may be beneficial in vandalism-prone areas. However, due to the geometry of the arm it is approximately 25% less power-efficient than a regular arm application.

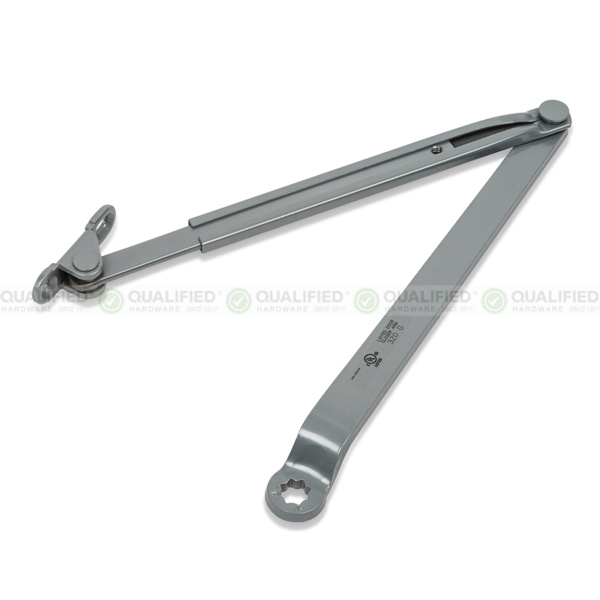

Regular arm - Non-handed arm mounts hinge side or top jamb. Parallel arm bracket required for parallel arm mounting.
Hold-Open arm - non-handed arm mounts hinge side, top jamb or parallel arm (parallel arm bracket required ).Hold-open is adjustable at the shoe.
Cush-N-Stop Arm (CUSH) - Optional, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe
H-Cush-N-Stop Arm (HCUSH) - Optional non-handed parallel arm, provides hold-open function with templated stop/hold-open points. Handle controls hold-open

Choose Finish:

US4 - 633 (Satin Brass Plated)

1 Choose Arm:
2 Choose Finish:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Suited for:

Commercial and institutional applications

Quality and Safety:

Tested and certified under ANSI Standard A156.4, grade 1
UL and ULC listed for self-closing fire-rated doors without hold-openCloser meets ADA requirements

Available Options: Choose Options Above

Arm:
Arm
Hold Open - A door closer arm with the capability of holding the door in the open position until manually closed. Hold Open arm door closers are not permitted to be used on fire door assemblies

Parallel Arm - Arm is mounted on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, in most situations, there is very little or no hardware projecting beyond the frame face. This may be beneficial in vandalism-prone areas. However, due to the geometry of the arm it is approximately 25% less power-efficient than a regular arm application.

Regular arm - Non-handed arm mounts hinge side or top jamb. Parallel arm bracket required for parallel arm mounting.

Hold-Open arm - non-handed arm mounts hinge side, top jamb or parallel arm (parallel arm bracket required ).Hold-open is adjustable at the shoe.

Cush-N-Stop Arm (CUSH) - Optional, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe

H-Cush-N-Stop Arm (HCUSH) - Optional non-handed parallel arm, provides hold-open function with templated stop/hold-open points. Handle controls hold-open
- REGULAR ARM
Finish:
- US4 - 633 (Satin Brass Plated)

Product at A Glance

Designed for both commercial and institutional applications
Adjustable from size 1 through size 6 and is shipped set to size 3
Closer mounts hinge side (pull side), top jamb and parallel arm mount with optional parallel arm bracket (push side) on either right or left swinging doors
Adjustable hydraulic backcheck
Adjustable closing-speed and latch-speed
Mounting holes are spaced 7-1/2" horizontally and 1" vertically, center to center
Shipped with regular arm, the DS Metal Cover, and self reaming and tapping screws
PA Shoe - 1460-62PA required for parallel arm mounting
US4 Satin Brass finish

Style	Door closer
Handing	Non-handed
Door Width	- Interior doors: maximum 5' - Exterior Doors: maximum 4'
Dimensions	With Standard cover 12-1/4" L x 2" H, 2-3/8" projection
Door Opening	Maximum 180° - frame and trim permitting

More Info

LCN offers a large variety of quality door closers to adapt to nearly any commercial or institutional application. This 1461 series closer is supplied with an adjustable spring size which makes it versatile and flexible for use in various conditions. It is shipped set to size 3 and it is adjustable from size 1 to 6 to accommodate your opening’s requirements.
