LCN 1461-REG-DEL-SRI-FPC

Special Order Adjustable Commercial Door Closer with Delayed Action

Quick Product Details

  • With Delayed Action
  • Full Plastic Cover
  • SRI,Special Rust Inhibitor Coating
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 1461-REG-DEL-SRI-FPC

Choose Options Below

LCN 1461-DEL adjustable commercial and institutional door closer with Delayed Action. Delayed action closing allows slow moving traffic to clear the opening before the door closer's normal closing cycle begins. With adjustable spring size 1-6 they can accommodate most installations right out of the box. Closer mounts hinge side (pull side) on either right or left swinging doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $272.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689-Sprayed Aluminum 689-Sprayed Aluminum
695- Sprayed Dark Bronze 695- Sprayed Dark Bronze

Overview

Special order non stock item with 6 week lead time
  • Designed for both commercial and institutional applications.
  • Delayed action, delayed action closing allows slow moving traffic to clear the opening before the door closer’s normal closing cycle begins. This feature can be helpful in health care facilities such as hospitals and nursing homes. It provides sufficient time for persons on crutches or in wheelchairs to pass through a door without concern of it closing.
  • Delays closing from 110° to 75° or 180° to 95° depending on templating. Delay time adjustable up to approximately 1 minute.
  • SRI.This optional process is applied prior to the LCN powder coat finish and greatly exceeds ANSI/BHMA Standard A156.4 for corrosion resistance.
  • Adjustable spring size 1 through size 6 and is shipped adjusted to size 3.
  • Closer mounts hinge side (pull side).
  • For interior doors to 5’0” and exterior doors to 4’0”.
  • Adjustable hydraulic backcheck.
  • Adjustable closing speed and latching speed.

Available Options: Choose Options Above

More Info

  • Non-handed.
  • Mounting holes spaced 7-1/2" horizontally and 1" vertically,center to center.
  • Dimensions with standard cover-12-1/4"L x 2"H, 2-3/8" projection..
  • Maximum opening, 180° frame and trim permitting.
  • UL and ULC listed for self-closing fire-rated doors without hold-open.
  • Tested and certified under ANSI Standard A156.4, grade 1.

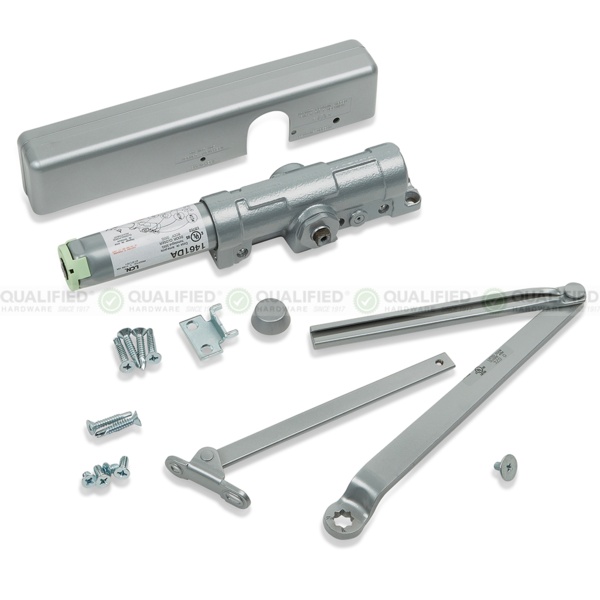

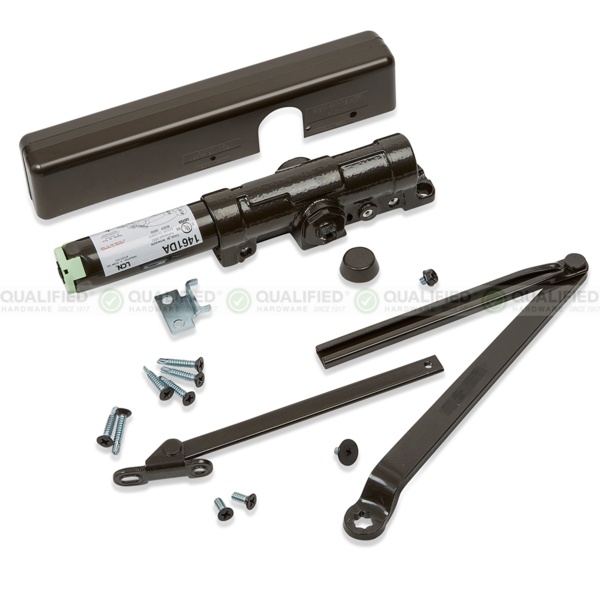

  • 1461 closer shipped with regular arm, Full plastic cover, and self reaming and tapping screws.
  • Closer meets ADA requirements.
