LCN 1461Hcush-AL

Adjustable Commercial and Institutional Door Closer with Hold Open Cush Arm

Quick Product Details

  • Adjustable Door Closer
  • Hold Open Cush-n-Stop Arm
  • Aluminum Finish-689

or for better pricing

Price: $408.00 /each

SKU: 1461Hcush-AL

Choose Options Below

This LCN 1461Hcush with hold open arm is an adjustable commercial and institutional door closer. Its adjustable spring size makes this closer versatile to accommodate nearly all installations without any major adjustments.

  • Stock Item
  • Order in the next 1 hour 50 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $408.00

Choose Finish:

AL-689 (Aluminum Painted) AL-689 (Aluminum Painted)

Replacing Your Door Closer?

Product Finder

Overview


Suited for:
  • Commercial and institutional applications

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, grade 1
  • UL and ULC listed for self-closing fire-rated doors without hold-open Closer meets ADA requirements

Special Orders Available:
  • Available with an EDA arm
  • Available with an SCUSH arm
  • More unlisted finishes available
Contact us directly to place your special order.


Available Options: Choose Options Above

Product at A Glance

  • Designed for both commercial and institutional applications

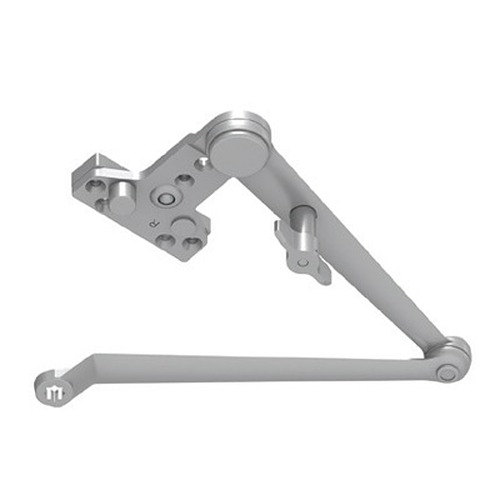

  • HCUSH  arm, Provides hold open function with templated stop/hold open points. Handle controls hold open function.
  • Adjustable from size 1 through size 6 and is shipped set to size 3
  • Closer mounts (push side) on either right or left swinging doors
  • Adjustable hydraulic backcheck
  • Adjustable closing-speed and latch-speed
  • Mounting holes are spaced 7-1/2" horizontally and 1" vertically, center to center

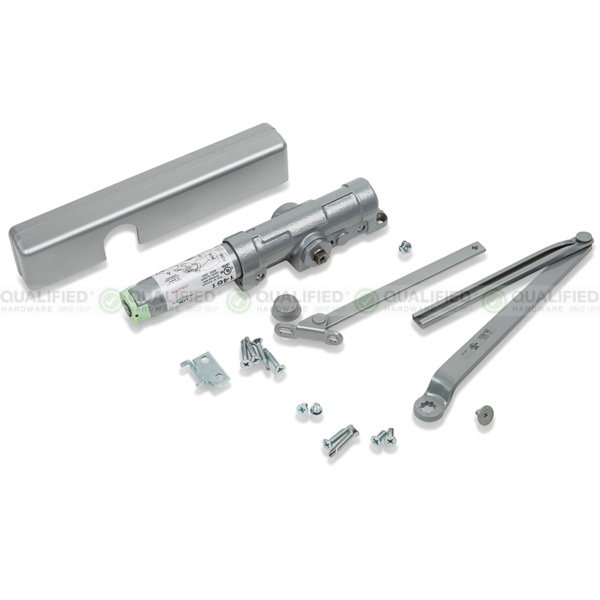

  • Shipped with HCUSH arm, slim line plastic cover, and self reaming and tapping screws
Style Door closer
Handing Non-handed
Door Width - Interior doors: maximum 5'
- Exterior Doors: maximum 4'
Dimensions With Standard cover 12-1/4" L x 2" H, 2-3/8" projection
Door Opening Maximum 100° - frame and trim permitting
Arm HCUSH Hold Open Cush-n-Stop Arm

More Info


LCN offers a large variety of quality door closers to adapt to nearly any commercial or institutional application. This 1461 series closer is supplied with an adjustable spring size which makes it versatile and flexible for use in various conditions. It is shipped set to size 3 and it is adjustable from size 1 to 6 to accommodate your opening’s requirements.
