LCN 2031

Concealed Overhead Track Arm Closer for ADA Applications

Quick Product Details

  • Concealed Overhead Track Arm Closer
  • Size 1 Spring
  • Heavy Duty
SKU: 2031

Price: $601.00

Choose Options Below

This LCN 2031 is a concealed overhead track arm closer supplied with spring size 1 for use in ADA applications. Designed for use with interior and exterior doors that measure up to 36" wide. Track and arm are concealed in the top rail of the applications. See more product information below

  • In Stock!
  • Order in the next 36 hours 4 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $601.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Handing:

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Quality and Safety:
  • UL & cUL listed for self-closing doors without hold-open.
  • Tested and certified under ANSI Standard A156.4, grade 1

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place  your special order.


Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Right Hand (RH)
    • Left Hand (LH)

Product at A Glance

  • This closer is designed to fit in a narrow, minimum 1-3/4” x  4" aluminum transom
  • It operates with a single acting cylinder in the head frame
  • Concealed arm and track mount in the door’s top rail
  • Spring size 1 supplied for ADA applications, that are required to be barrier-free with an opening force of 5 lb or less in interior doors, and 8.5 lb or less on exterior doors
  • Any  door closer that is selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
  • Single lever arm and roller assembly

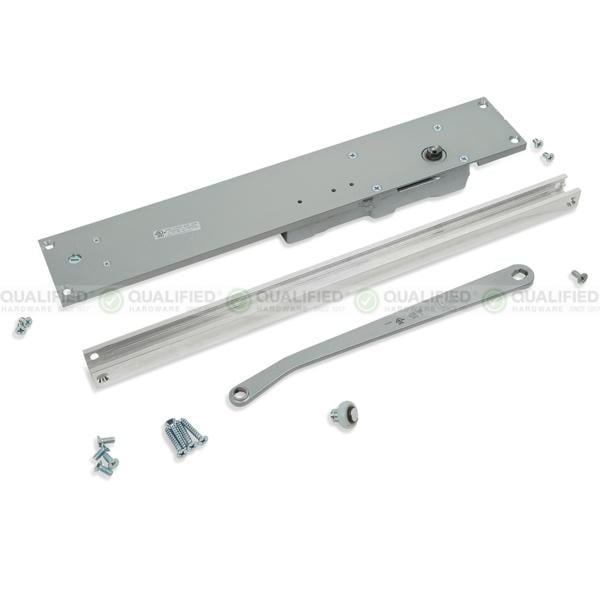

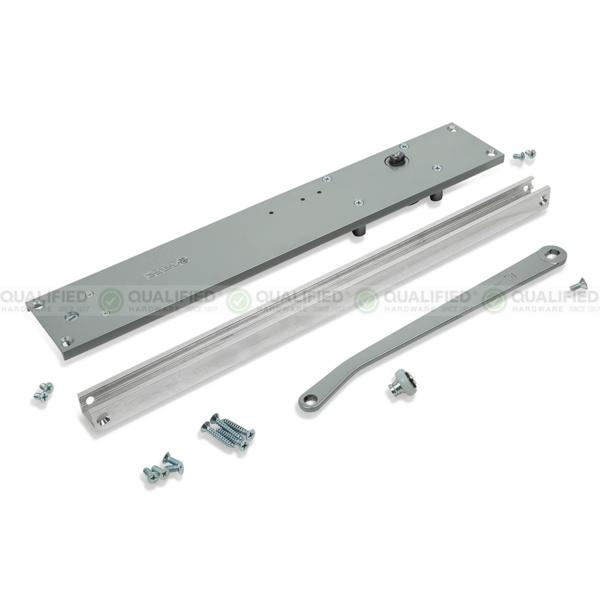

  • Shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
  • Specify the next higher size closer where strong drafts exist
Style Concealed Overhead Track Arm Closer
Grade Heavy Duty
Handing Handed
Door Width Maximum 36"

This specific concealed overhead track arm closer is designed to meet the requirements of the American with Disabilities Act (ADA). It is barrier-free with opening force of 5 lbs. or less necessary on interior doors and 8.5 lbs. on exterior doors. This closer is designed to fit in doors with narrow transom that measures at least 1-3/4” by 4”.
