Left Hand Shown


Right Hand Shown


LCN 2034-632

Special Order Concealed Overhead Track Arm Closer with Brass Finish

Quick Product Details

  • Concealed Overhead Track Arm Closer
  • Size 4 Spring
  • Heavy Duty
  • 632 Bright Brass (US3) Finish
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2034-632

Choose Options Below

This LCN 2034 Pacer concealed overhead track arm closer is designed to fit interior doors measuring 38" to 48" wide and exterior doors measuring 30" to 36" wide. In applications where a strong draft exists, specify next size closer.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left hand (LH) Left hand (LH)
Right hand (RH) Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.




  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door


Choose Finish:

US3 Polished Brass US3 Polished Brass


Special order non stock item with 4 week lead time
Quality and Safety:
  • UL & cUL listed for self-closing doors without hold-open.
  • Tested and certified under ANSI Standard A156.4, grade 1


Available Options: Choose Options Above

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)
  • Finish:

Product at A Glance

  • Size 4 spring
  • This closer is designed to fit in a narrow, minimum 1-3/4” x  4" aluminum transom
  • It operates with a single acting cylinder in head frame
  • Concealed arm and track in door top rail
  • Single lever arm and roller assembly

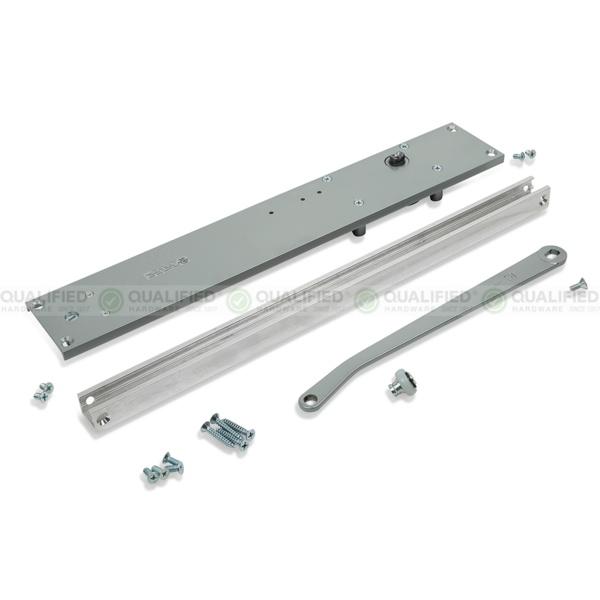

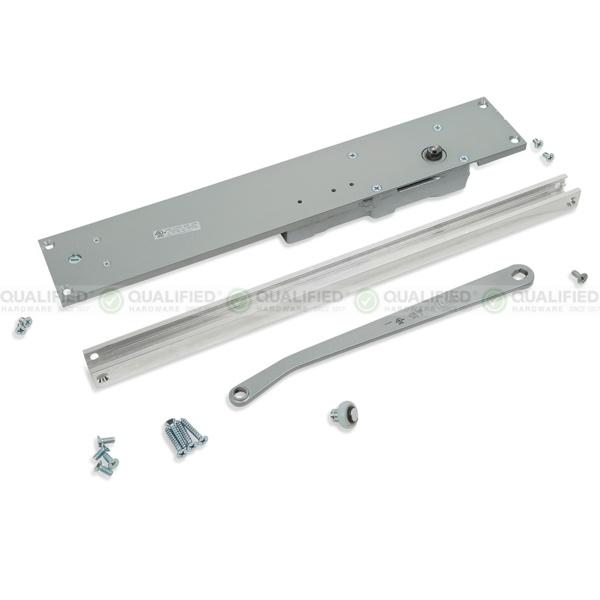

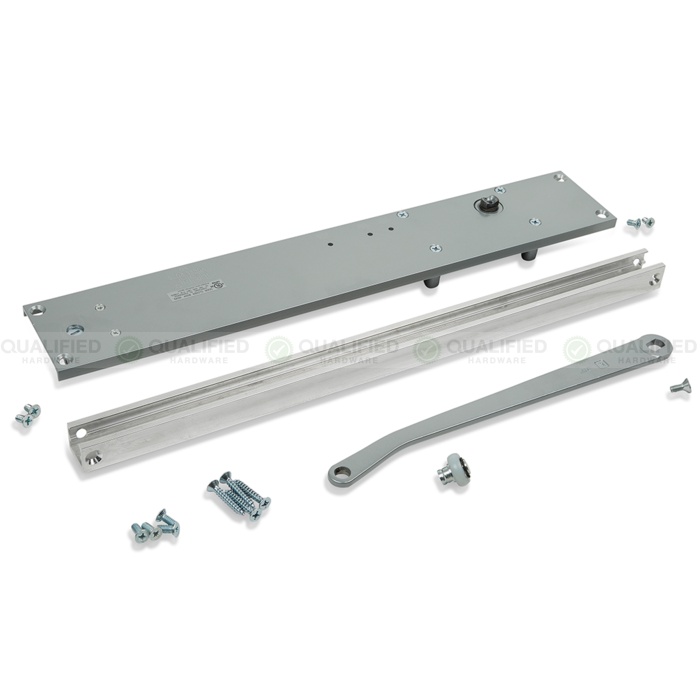

  • Shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
Style Concealed Overhead Track Arm Closer
Grade Heavy Duty
Handing Handed
Door Width Interior: 38" to 48"
- Exterior: 30" to 36"

More Info

LCN door closers are known to provide for way more than simply closing your doors. They are designed to operate the opening and closing of your doors in an efficient and safe manner. When opening the door, the closer will ensure its smooth function with backcheck at the end of the cycle to prevent the door from slamming into the wall, and during the closing cycle the closer will maintain a uniform speed up until a few inches before latching when it will slow down the door to avoid slamming.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
