LCN 2035

Concealed Overhead Track Arm Closer

Quick Product Details

  • Concealed Overhead Track Arm Closer
  • Size 5 Spring
  • Heavy Duty
SKU: 2035

Price: $631.00 /each

Choose Options Below

This LCN 2035 Pacer is a concealed overhead track arm closer with a size 5 spring for interior doors that measure from 48" to 54" in width and exterior doors that measure from 36" to 42" in width.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $631.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL-689 (Aluminum Painted) AL-689 (Aluminum Painted)
DKBZ-695 (Dark Bronze Painted) DKBZ-695 (Dark Bronze Painted)

Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Quality and Safety:
  • UL & cUL listed for self-closing doors without hold-open.
  • Tested and certified under ANSI Standard A156.4, grade 1

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place  your special order.


Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Size 5 spring
  • This closer is designed to fit in a narrow, minimum 1-3/4” x 4" aluminum transom
  • It operates with a single acting cylinder in head frame
  • Concealed arm and track mount in door top rail
  • Single lever arm and roller assembly

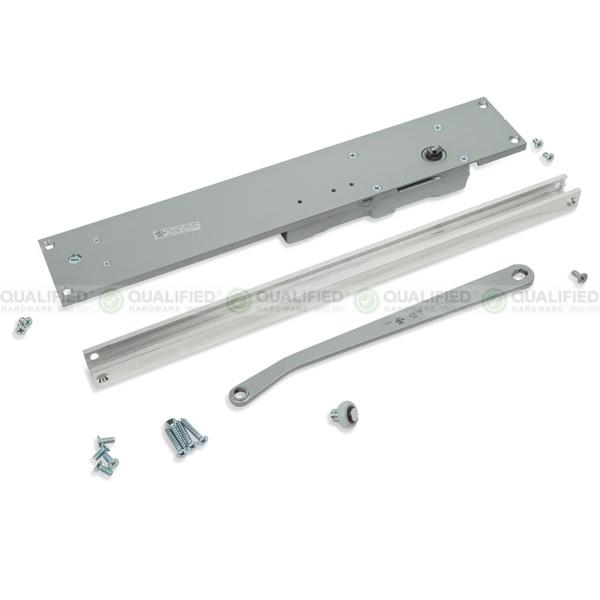

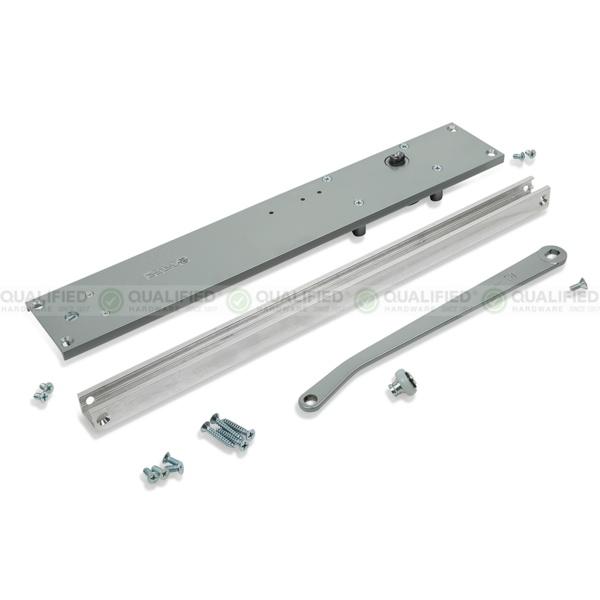

  • Shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
  • Specify next higher size closer where strong drafts exist
Style Concealed Overhead Track Arm Closer
Grade Heavy Duty
Handing Handed
Door Width - Interior: 48" to 54"
- Exterior: 36" to 42"

A track arm door closer is one that operates with an arm that moves along a track when opening and closing for smooth and efficient function. This closer is supplied with the size 5 spring which will accommodate interior door within 48” and 54” wide  range and exterior doors that measure between 36” and 42” in width.
