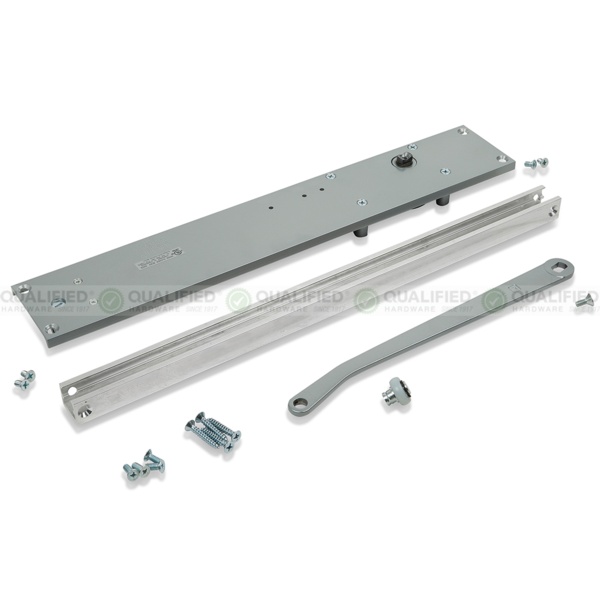

Left Hand Shown

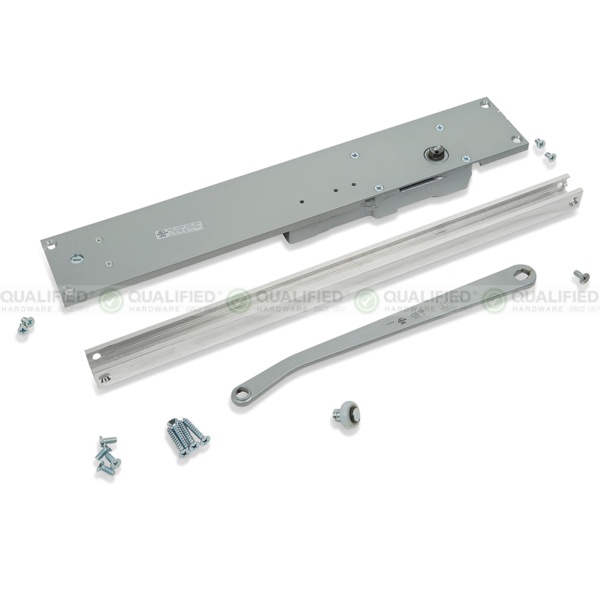

Right Hand Shown

LCN 2035H

Special Order Concealed Overhead Track Arm Closer with Hold Open

Quick Product Details

  • Concealed Overhead Track Arm Closer
  • Size 5 Spring
  • Heavy Duty
  • With Hold Open Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2035H

Choose Options Below

This LCN 2035 Pacer is a concealed heavy duty overhead track arm closer with a size 5 spring for interior doors that measure from 48" to 54" in width and exterior doors that measure from 36" to 42" in width.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

AL-689 (Aluminum Painted) AL-689 (Aluminum Painted)
DKBZ-695 (Dark Bronze Painted) DKBZ-695 (Dark Bronze Painted)

Overview

Special order non stock item with 4 week lead time.



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Size 5 spring
  • Hold open with track
  • This closer is designed to fit in a narrow, minimum 1-3/4” x 4" aluminum transom.
  • It operates with a single acting cylinder in head frame.
  • Concealed arm and track mount in door top rail.
  • Single lever arm and roller assembly.
  • Shipped with standard arm, hold-open track  mounting/finish plate, and wood and machine screw pack.
Style Concealed Overhead Track Arm Closer
Grade Heavy Duty
Handing Handed
Door Width - Interior: 48" to 54"
- Exterior: 36" to 42"

More Info


A track arm door closer is one that operates with an arm that moves along a track when opening and closing for smooth and efficient function. This closer is supplied with the size 5 spring which will accommodate interior door within 48” and 54” wide  range and exterior doors that measure between 36” and 42” in width.
