LCN 2215DPS-689

Special Order Concealed Heavy Duty High Security Track Closer with Door Position Switch

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2215DPS-689

Choose Options Below

The LCN 2210 series features complete concealment with special components to minimize tampering and vandalism. Forged steel, single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional, and other high traffic applications. With DPS door position switch.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order item with 8 week lead time

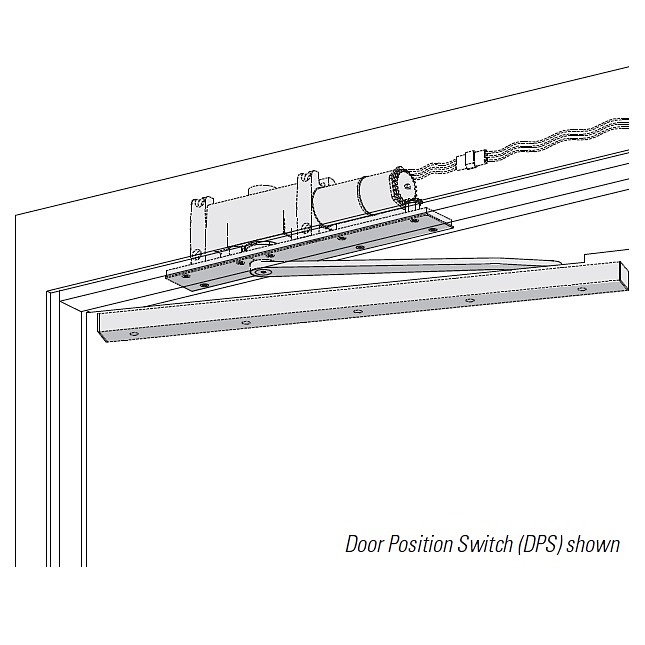

  • Concealed in frame heavy duty closer. Concealed cylinder mounts in head frame, concealed arm and track in top rail of door.
  • DPS-Provides normally open (N.O.) and normally closed (N.C.) circuit. A three wire connector harness with 84” (2134 mm), 16 AWG leads is furnished
    to simplify connection to field wiring. Single pole double throw (SPDT) contacts rated at 125/250 VAC at 10.1 amps maximum resistive load are standard.
  • Field adjustable DPS switch can interface with security and monitoring systems.
  • Standard 2210 series closer shipped with standard arm, security track (non hold-open), two piece metal cover plate, and TORX machine screw pack.
  • For interior or exterior doors.
  • 2215 for interior doors 48" to 54" wide and exterior doors 36" to 42" wide.
  • Specify right or left swinging door.
  • Aluminum painted finish.
  • Door thickness 1-3/4” minimum.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • The 2210 Series is UL listed for self-closing doors.
  • Tested and certified under ANSI A156.4
