LCN 3130-STD-HBMP-SRI

Special Order Concealed in Door Track Arm Door Closer for Interior doors

Quick Product Details

  • Concealed In Door Track Arm Closer
  • For Interior Doors
  • Track bumper and hold open
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 3130-STD-HBMP-SRI

Choose Options Below

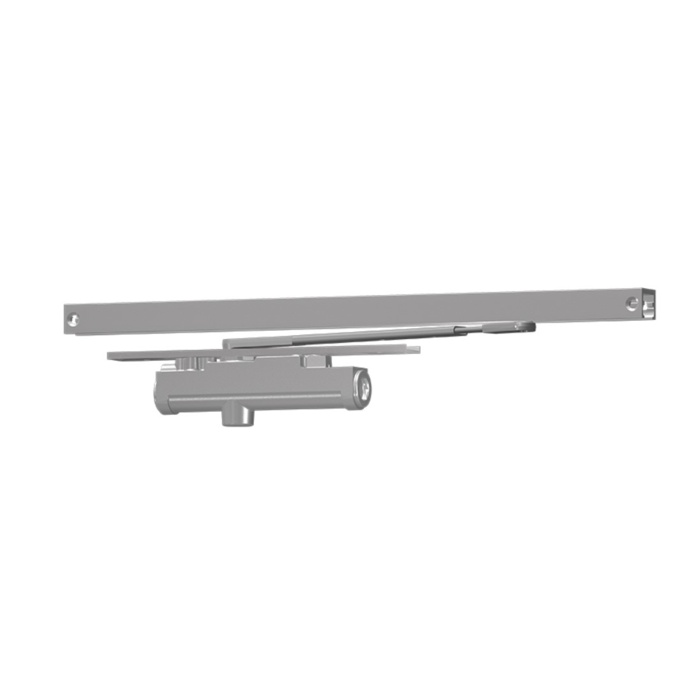

This LCN 3130 concealed in door track door closer is designed to mount in a 1-3/4" thick interior door. The single lever arm and roller assembly provides complete concealment. Spring size 3 for interior door 34" - 38" wide. Includes special rust inhibitor coating, track bumper, hold open and screws for either hollow metal or wood doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26 - Bright Chrome US26 - Bright Chrome

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

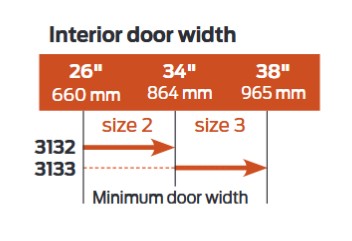

Choose Spring Size:

Size 1 For 36" Interior Door ADA applications (3131)
Size 2 (3132)
Size 3 (3133)

Help Me Decide

  • For LCN 3131 choose spring size #1
  • For LCN 3132 choose spring size #2
  • For LCN 3133 choose spring size #3

Size 1 for ADA applications-Barrier Free- Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors up to 42" wide. For 48" wide doors, choose Size 2

Overview


Quality and Safety:
  • UL and ULC listed with regular arm for self-closing doors.
  • Tested and certified under ANSI Standard A156.4, Grade 1

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Spring Size: info icon

    • Size 1 For 36" Interior Door ADA applications (3131)
    • Size 2 (3132)
    • Size 3 (3133)

Product at A Glance

  • The cylinder and standard arm are concealed in top rail of door.
  • The  track is concealed in the head frame.
  • Includes Track Bumper
  • Hold Open Track
  • Includes Special Rust Inhibitor coating
  • Shipped with wood and machine screw pack
  • Can be templated for 140° swing
Style Concealed In Door Track Arm Closer
Handing Handed
Door Thickness Minimum 1-3/4"
Top Rail Minimum 4" required

More Info


Door closers are crucial to the safety and efficiency of an opening. The LCN closers will ensure complete satisfaction while enhancing the quality of your facility. This 3130 closer is concealed  and supplied standard with a standard arm, hold open and bump track and wood and machine screws. It will fit doors with a thickness of 1-3/4”.
