Left Hand Shown



LCN 4011 - US4

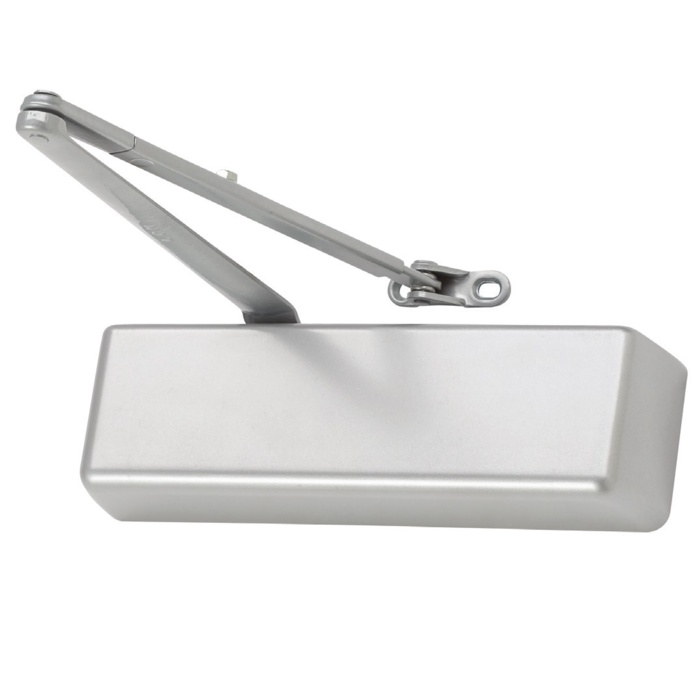

Special Order Smoothee-Heavy Duty Institutional Adjustable Door Closer

Quick Product Details

  • Adjustable Door Closer
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4011 - US4

Choose Options Below

This LCN 4011 is a durable, high quality, adjustable door closer for high traffic, rugged institutional applications. Standard package includes a regular arm, a standard plastic cover and self reaming and tapping screws.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US4  (Satin Brass) US4 (Satin Brass)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Suited for :
  • High traffic institutional applications.
  • Hinge side-pull side mount.

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold-open
  • Closer meets ADA requirements

Special Orders Available: Contact us directly to place your special order.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

Non-stock special order with 6-8 week lead time
  • Satin Brass US4 finish

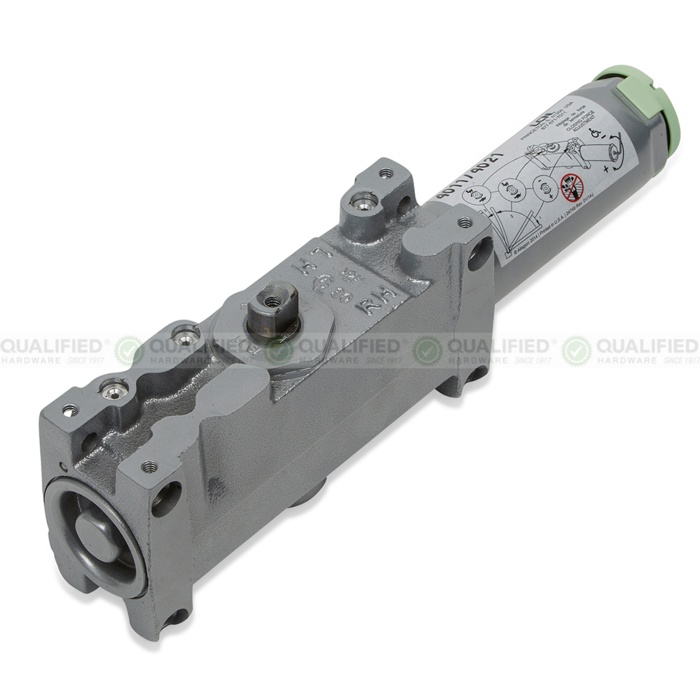

  • Cast iron cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
  • Mounting holes spaced 2-1/2” vertically and 6" horizontally

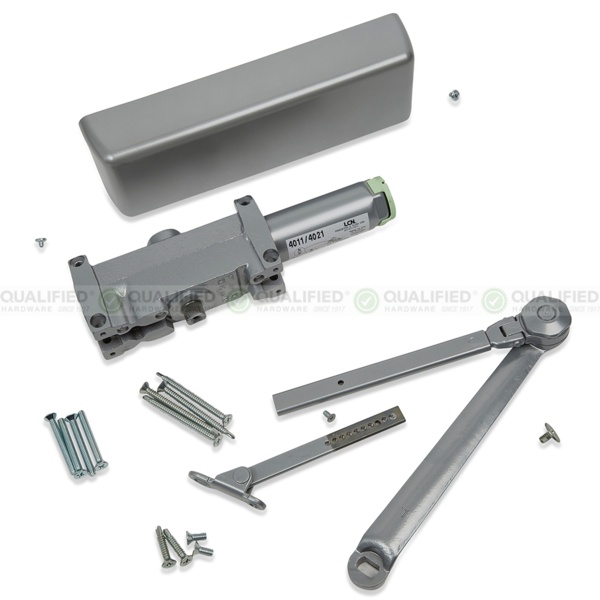

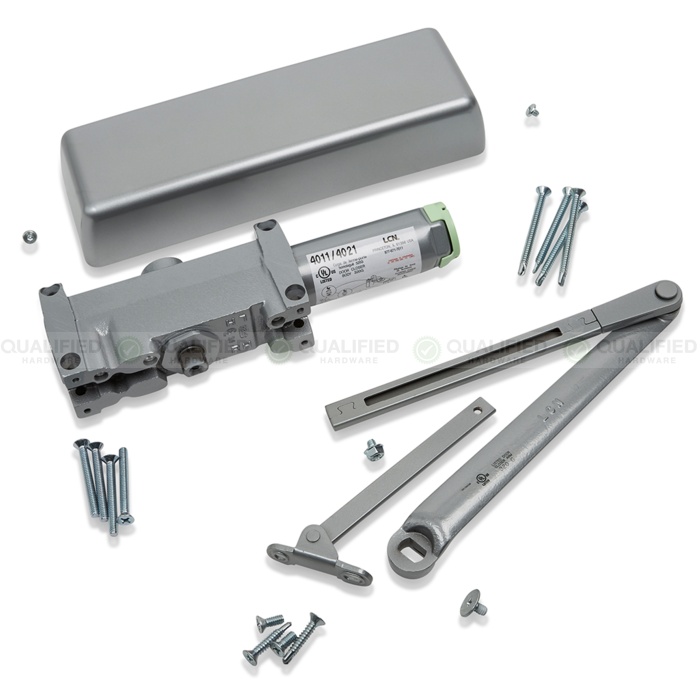

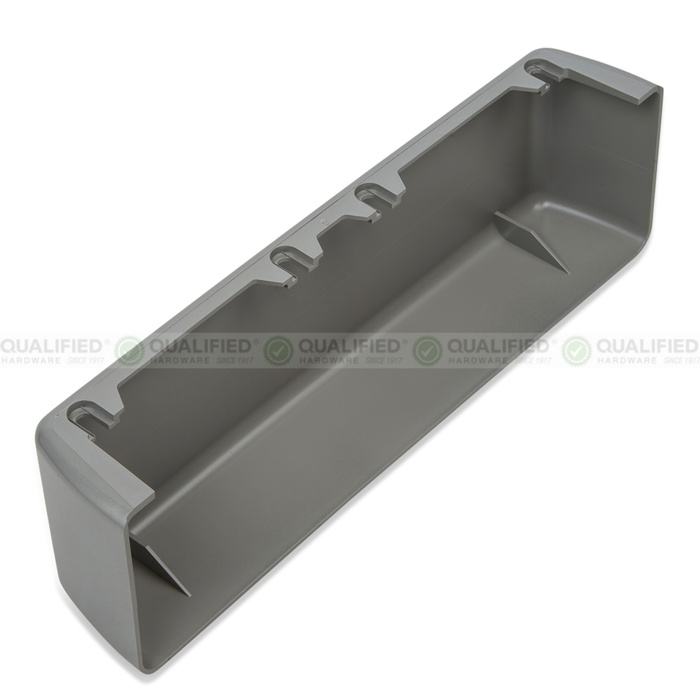

  • Standard 4011 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws
  • Supplied with All Weather Fluid
  • Forged steel main arm
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Hinge side/pull side
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

More Info

The LCN 4011  closer is a high quality closer that has been tested and proven to endure ten million cycles. It is made of cast iron with a forged steel main arm  which greatly attributes to the durability of the closer. The all weather fluid allows this closer to be used under all weather conditions without getting damaged.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


How To Install LCN 4011 Closer thumbnail

How To Install LCN 4011 Closer
