LCN 4011-DEL

Special Order Smoothee-Heavy Duty Institutional Adjustable Door Closer with Delayed Action

Quick Product Details

  • Adjustable Door Closer
  • Heavy Duty
SKU: 4011-DEL

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

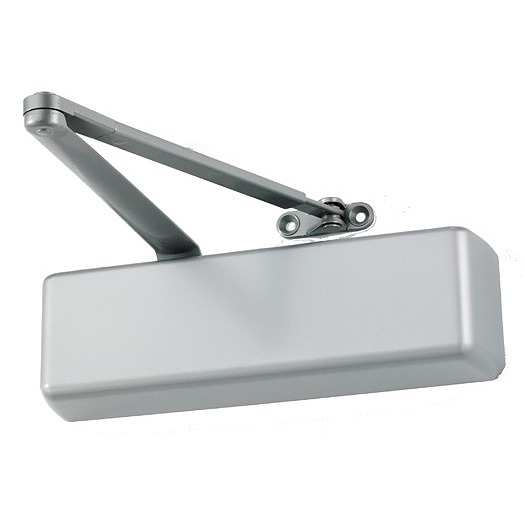

This LCN 4011-DEL is a durable, high quality, adjustable door closer for high traffic, rugged institutional applications. The delayed action feature will delay closing between 120° and 80° to allow slow moving traffic to clear the opening. The delay time can be adjusted to up to 1 minute.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DKBRZ -Dark Bronze (695) DKBRZ -Dark Bronze (695)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview


Special order non stock item with 4 week lead time.
  • The delayed action feature will delay closing between 120° and 80° to allow slow moving traffic to clear the opening. The delay time can be adjusted to up to 1 minute.
  • High traffic institutional applications.
  • Hinge side-pull side mount.

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold-open
  • Closer meets ADA requirements
  • Closer mounts hinge side (pull side), specify right or left swinging door.



Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Cast iron cylinder is adjustable from size 1 through size 5 and is shipped set to size 3.
  • Standard 4011 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws
  • Mounting holes spaced 2-1/2” vertically and 6" horizontally.
  • Forged steel main arm.
  • Supplied with All Weather Fluid.
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Hinge side/pull side
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

More Info


The LCN 4011 closer is a high quality closer that has been tested and proven to endure ten million cycles. It is made of cast iron with a forged steel main arm  which greatly attributes to the durability of the closer. The all weather fluid allows this closer to be used under all weather conditions without getting damaged.
