Super Smoothee-Heavy Duty Cush Arm Adjustable Door Closer

Quick Product Details

  • Door closer
  • CUSH-N- STOP Arm
  • Heavy Duty

or for better pricing

Price: $471.00 /each


Choose Options Below

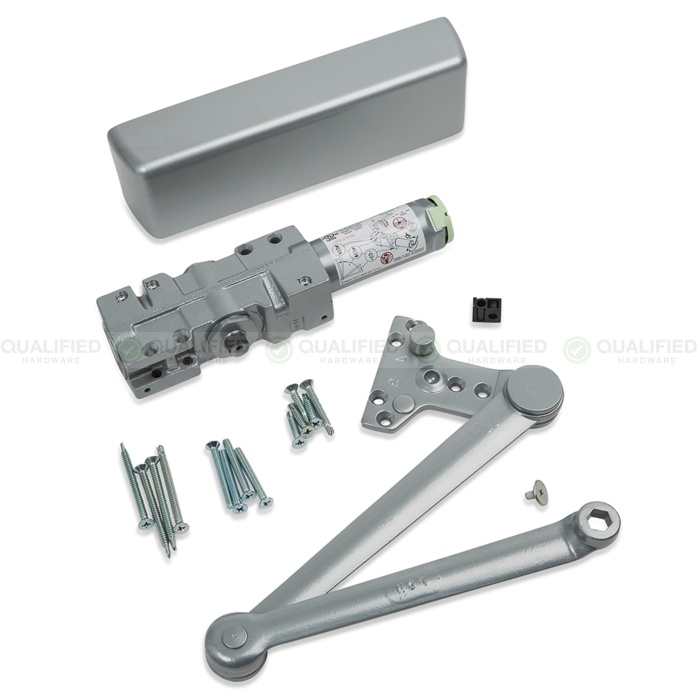

This LCN 4040XP-CUSH Super Smoothee is a heavy duty door closer featuring the CUSH-N-STOP arm without hold-open. This product is non-handed and suitable for interior doors up to 5' wide and exterior doors up to 4' wide.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $471.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DKBRZ -Dark Bronze (695) DKBRZ -Dark Bronze (695)

Replacing Your Door Closer?

Product Finder


Suited for :
  • High traffic commercial applications

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold-open
  • Closer meets ADA requirements

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

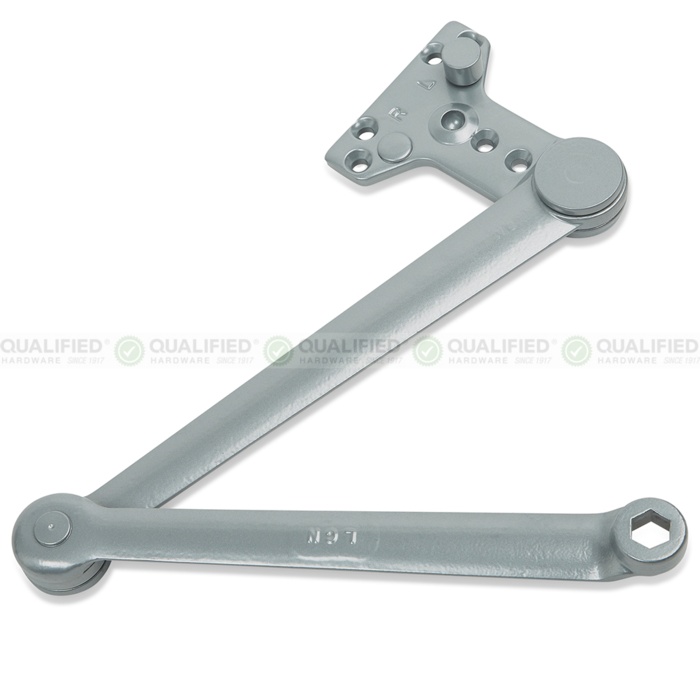

  • CUSH-N-STOP®, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe
  • Adjustable from size 1 through size 6 and is shipped set to size 3
  • Closers will mount parallel arm (push side) w/PA Shoe on either right or left swinging doors
  • Mounting holes are  spaced 2-1/4” vertically and 1" horizontally

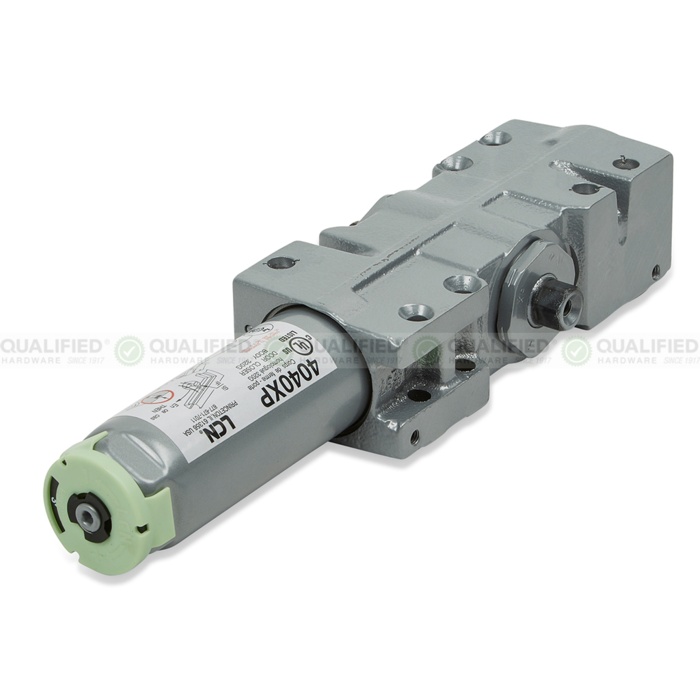

  • Cylinder is made of cast iron
  • Supplied with All-weather fluid
Style Door closer
Grade Heavy Duty
Handing Non-handed
Door Width - Interior doors: maximum 5'
- Exterior Doors: maximum 4'

More Info

LCN 4040XP series is designed with unmatched superior quality to ensure longevity even in applications which are subject to abusive conditions of the real world. The Cush-n-stop arm supplied with this specific package is a non-handed, parallel arm with a solid forged steel main arm and forearm with a stop in the soffit shoe.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
