Special Order XP Heavy Duty Door Closer With Parallel Arm Bracket and Metal Cover

Quick Product Details

  • Door closer With Parallel Arm Bracket
  • Heavy Duty
  • Metal Cover
Get a Quote
Special Order non-stock item Requires 6 week lead time


Choose Options Below

This LCN 4040XP-RW/PA heavy duty door closer is supplied with Tri-Pak arm which includes a regular arm for hinge side and top jamb mount applications and a parallel arm bracket for parallel arm mount on push side. The XP series provides extra protection for real world applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $343.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL-Aluminum Painted (689) AL-Aluminum Painted (689)
DKBRZ-Dark Bronze Painted (695) DKBRZ-Dark Bronze Painted (695)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Special order non stock item with 4 week lead tme.
Suited for :
  • High traffic commercial applications

Quality and Safety:
  • UL and cUL listed for self-closing doors without hold-open
  • Closer meets ADA requirements

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • XP - eXtra Protection in real world applications
  • The LCN 4040XP replaces and retrofits the 4041 closer.
  • With metal cover.
  • 4040XP can be used with all 4041 accessories

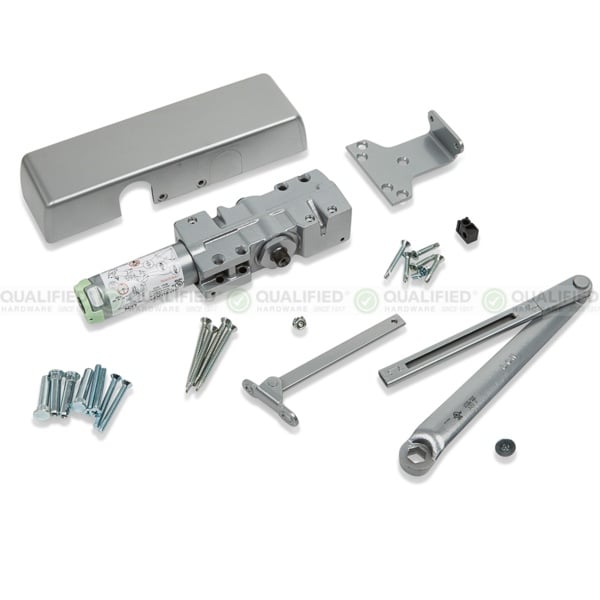

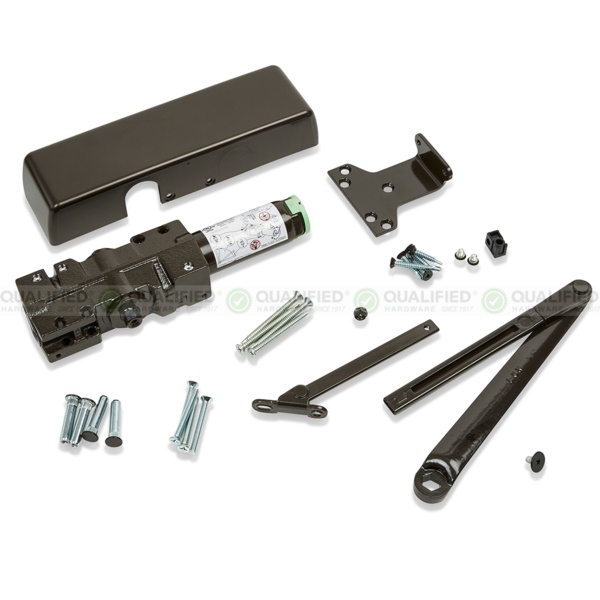

  • Shipped with Tri-Pak arm which includes a regular arm for hinge side (pull side) and top jamb mount (push side) and parallel arm bracket for parallel arm mount for push side
  • Adjustable from size 1 through size 6 and is shipped set to size 3
  • Cast Iron construction
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • Supplied with All Weather Fluid
Style Door closer
Grade Heavy Duty
Handing Handed
Door Width Interior doors: maximum 5'
- Exterior Doors: maximum 4'

More Info

A stronger more durable door closer you will not find! The LCN 4040XP, by far, surpasses all standards to serve the openings of the real world that are extremely susceptible to abuse. This closer replaces and retrofits the old 4041 closer and it can be used with all 4041 accessories. The Tri-Pak arm allows for flexibility in the mounting.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


How to Install LCN 4040XP Closer thumbnail

How to Install LCN 4040XP Closer
