Special Order Spring Hold Open Super Smoothee-Heavy Duty Cush Arm Adjustable Door Closer

Quick Product Details

  • Door closer
  • Spring Hold Open - CUSH-N- STOP Arm
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time


Choose Options Below

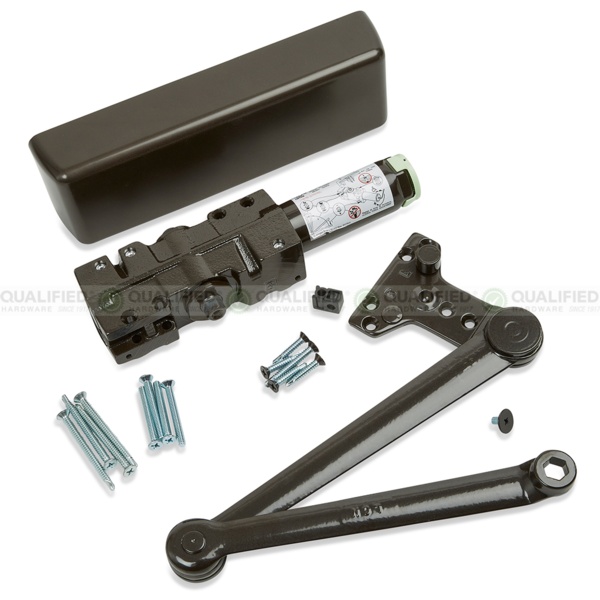

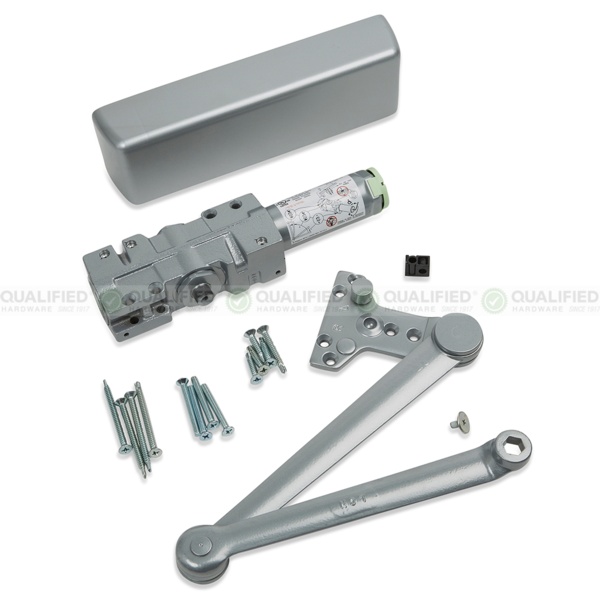

This LCN 4040XP-SHCUSH Spring Hold Open Super Smoothee is a heavy duty door closer featuring the Spring CUSH-N-STOP arm with hold-open. This product is non-handed and suitable for interior doors up to 5' wide and exterior doors up to 4' wide.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DKBRZ -Dark Bronze (695) DKBRZ -Dark Bronze (695)


Special Order Non-Stock with 4-6 week lead time

Suited for :
  • High traffic commercial applications

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold-open
  • Closer meets ADA requirements

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

  • Spring Hold Open CUSH-N-STOP®, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe
  • Adjustable from size 1 through size 6 and is shipped set to size 3
  • Closers will mount parallel arm (push side) w/PA Shoe on either right or left swinging doors
  • Mounting holes are  spaced 2-1/4” vertically and 1" horizontally
  • Cylinder is made of cast iron
  • Supplied with All-weather fluid
  • Includes TBWMS Thru-Bolt Wood and Machine Screws for fasteners
Style Door closer
Grade Heavy Duty
Handing Non-handed
Door Width - Interior doors: maximum 5'
- Exterior Doors: maximum 4'

More Info

LCN 4040XP series is designed with unmatched superior quality to ensure longevity even in applications which are subject to abusive conditions of the real world. The Spring Hold Open Cush-n-stop arm supplied with this specific package is a non-handed, parallel arm with a solid forged steel main arm and forearm with a stop in the soffit shoe.
