LCN 4040XPT-H BUMPER

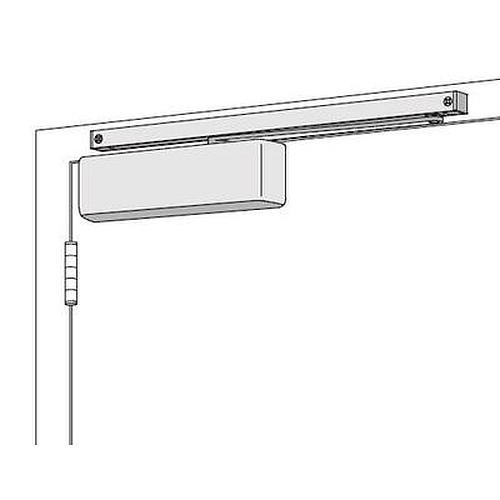

Special Order Heavy Duty Track Closer with Hold Open Arm and Bumper for Interior Doors

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4040XPT-H BUMPER

Choose Options Below

LCN 4040XPT-H Bumper heavy duty track closer with hold open for interior doors. LCN's most flexible heavy duty track style closer, interior hinge side, top jamb, stop face mounting, single lever arm.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL-689 Aluminum Painted AL-689 Aluminum Painted
DKBRZ-695 Dark Bronze Painted DKBRZ-695 Dark Bronze Painted

Overview

special order item with 4 week lead time

  • Heavy duty track closer with hold open for interior doors in institutional and other rugged high traffic applications.
  • Bumper-Mounts in track to assist backcheck, does not replace auxiliary stop. Limits maximum opening.
  • Cylinder is adjustable from sizes 1 thru 4 and is shipped set to size 3.
  • Closer mounts hinge side (pull side), top jamb (pull side) or push side on door.
  • For interior doors to 4’0”.
  • Hold-open points at 85°, 90°, 95°, 100°, 105° , or 110°, depending on
    the clip location in track.

Available Options: Choose Options Above

More Info

  • Non-Handed
  • Standard 40410XPT-HBumper series closer is shipped with standard hold open arm, standard track, track roller, bumper, standard plastic cover, and self reaming and tapping screws
  • Cast Iron cylinder
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • The 4040XPT-H Series is UL and cUL listed with a standard track for self-closing doors
  • Tested and certified under ANSI Standard A156.4, grade one.
