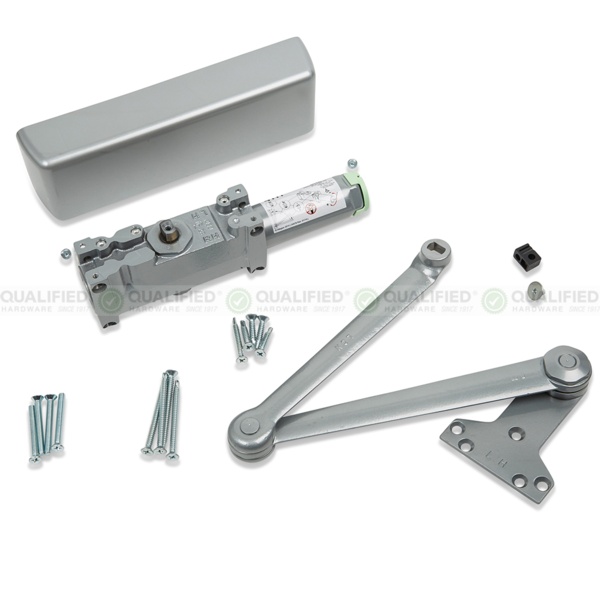

Left Hand Shown

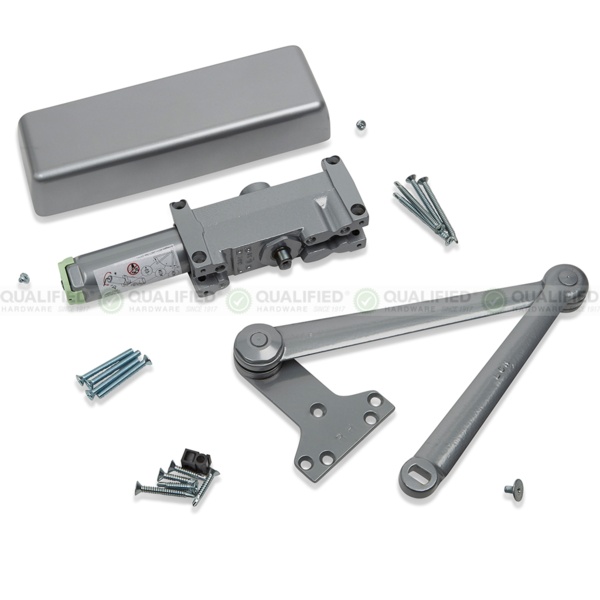

Right Hand Shown

LCN 4111-EDA-696

Special Order Smoothee Heavy Duty Parallel Arm Adjustable Closer

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: 4111-EDA-696

Choose Options Below

This 4111-EDA adjustable door closer is supplied with the EXTRA DUTY parallel arm.. This closer is suitable for potentially abusive applications because of its high durability standards. Select right or left handed to fit your door properly.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $312.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

Sprayed Satin Brass Sprayed Satin Brass

Overview

Special order non stock iem with 6 week lead time

  • High traffic institutional applications
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold open
  • Closer meets ADA requirements

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Heavy duty EXTRA DUTY (EDA) parallel arm closer designed specifically for institutional and other rugged high traffic applications
  • 4111 Cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
  • Mounting holes spaced 2-1/2" vertically and 6" horizontally
  • Standard 4110 series closer is shipped with Extra Duty Arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
  • Supplied with All Weather Fluid
  • Cylinder is made of cast iron
Finish 696 Powder Coated Brass Finish
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Push side only
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

More Info


The 4111 LCN door closer is of heavy duty quality for use in institutional or similar tough applications that are subject to heavy traffic. This closer is supplied standard with the extra duty  parallel arm which gets mounted on the push side of the door and can be very beneficial in preventing vandalism. The all weather fluid feature allows this device to be used under all weather conditions without sustaining damage.
