LCN 4111-FL

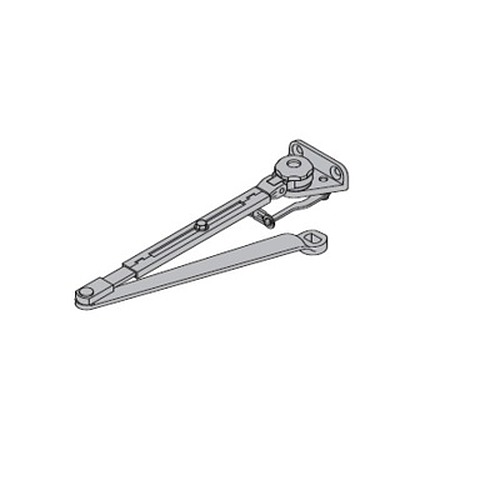

Special Order Door Closer with Fusible Link Hold Open Arm

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 4111-FL

Choose Options Below

Handed fusible link arm releases hold-open function adjustable at shoe when exposed to temperatures above 165° F.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door


Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)


Special order non stock item with 4 week lead time
  • Door closer wit parallel arm Fusible Link hold open arm.
  • Handed arm releases hold-open function adjustable at shoe when exposed to temperatures above 165° F.
  • 1/8” maximum reveal. NOTE: Check local codes before specifying FL arms.NOT A LIFE SAFETY PRODUCT!
  • Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”.
  • Push side mounting only.
  • specify right or left swinging door.
  • Sprayed aluminum finish.


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • FUSIBLE LINK ARM-handed arm releases hold-open function adjustable
    at shoe when exposed to temperatures above 165° F.
    NOTE: Check local codes before specifing FL arms
  • Heavy duty parallel arm closer designed specifically for institutional and other rugged high traffic applications
  • 4111 Cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
  • Mounting holes spaced 2-1/2" vertically and 6" horizontally
  • Supplied with All Weather Fluid
  • Cylinder is made of cast iron
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Push side only
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

More Info

The 4111 LCN door closer is of heavy duty quality for use in institutional or similar tough applications that are subject to heavy traffic. This closer is supplied standard with the extra duty fusible link parallel arm which gets mounted on the push side of the door and can be very beneficial in preventing vandalism. The all weather fluid feature allows this device to be used under all weather conditions without sustaining damage.
