LCN 4111CUSH-693

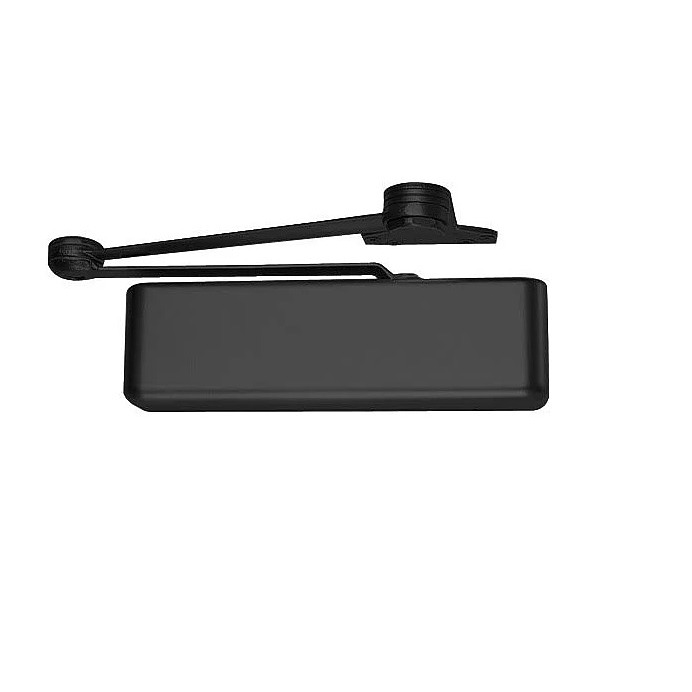

Special Order Smoothee Heavy Duty Parallel CUSH Arm Adjustable Closer

Quick Product Details

  • Adjustable Door Closer
  • Parallel CUSH Arm
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4111CUSH-693

Choose Options Below

This LCN 4111CUSH Smoothie Parallel CUSH Arm adjustable door closer is designed for high traffic institutional applications. This closer is UL and cUL listed for self-closing doors without hold-open. It is also certified to ANSI standard A156.4 Grade 1 requirements.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $412.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

693 (Black Painted) 693 (Black Painted)

Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.




  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door



Suited for :
  • High traffic institutional applications

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold open.
  • Closer meets ADA requirements

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.


Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)

Product at A Glance

Special Order 3-4 week lead time
  • Finished in Black Paint, BHMA 693
  • CUSH-N-STOP ARM, handed parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe
  • 4111 Cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
  • Mounting holes are spaced 2-1/2” vertically and 6" horizontally
  • Supplied with All Weather Fluid
  • Cylinder is made of cast iron
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Push side only
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

More Info

LCN 4111 series door closers are available with various arm options to suit the needs of your application. This specific closer is supplied with a CUSH-N-STOP arm which is a parallel arm that is handed and features a solid forged steel main arm and forearm that includes a built-in stop in the soffit shoe. This closer’s mounting holes are spaced 2-1/2” vertically and 6” horizontally.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
