LCN 4116-CUSH-TBWMS

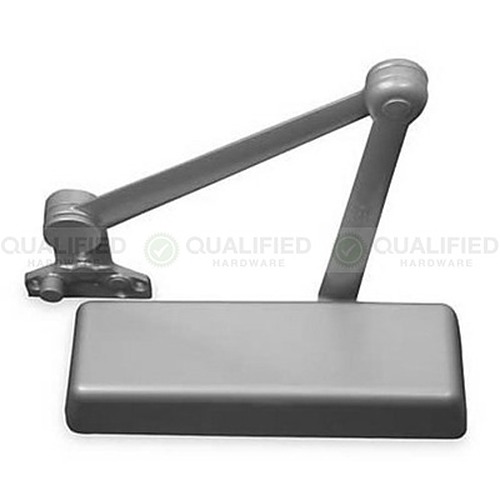

Special Order Smoothee Heavy Duty Parallel Arm Closer with CUSH Arm

Quick Product Details

  • Door closer
  • Parallel Arm
  • Heavy Duty
  • CUSH Arm
SKU: 4116-CUSH-TBWMS

Price: $279.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This LCN 4116-CUSH is a heavy duty door closer with a parallel arm. It is supplied with the 4116 #6 sized cylinder which will fit interior doors from 55" to 60" wide or exterior doors from 43" to 48" wide. Its mounting holes are spaced 2-1/2" vertically and 6" horizontally.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $279.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

DKBRZ- Dark Bronze 695 Powder Coated DKBRZ- Dark Bronze 695 Powder Coated
AL- Aluminum 689 Powder Coated AL- Aluminum 689 Powder Coated

Overview

Special order non stock item with 4 week lead time.

Suited for:
  • High traffic institutional applications
  • With CUSH-N-STOP ARM, handed parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe.

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • The 4110 series is UL and cUL listed for self-closing doors without hold open.
  • Closer meets ADA requirements




Available Options: Choose Options Above

Product at A Glance

  • Supplied with 4116 #6 sized cylinder
  • 4116 closer is shipped with CUSH arm, standard plastic cover, 4110-201 fifth screw spacer and Thru Bolts with Wood & Machine Screws (TBWMS) for 1-3/4" thick doors.
  • Mounting holes are spaced 2-1/2” vertically and 6" horizontally
  • Supplied with All Weather Fluid
  • Cylinder is made of cast iron
Style Door closer with CUSH Arm
Grade Heavy Duty
Handing Handed
Mounting Push side only
Door Width - Interior doors: 55" to 60"
- Exterior Doors: 43" to 48"

This LCN 4116-CUSH is a Smoothie parallel arm door closer for heavy duty, high traffic applications. It is supplied with a size 6 cylinder for interior doors measuring between 55” and 60” in width and for exterior doors between 43” and 48” wide. This closer can only be mounted on the push side of the door. It is handed for right and left handed doors (select above).
