LCN 4414ME-REG-693

Special Order Sentronic Closer/Holder

Quick Product Details

  • Sentronic Closer/Holder
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4414ME-REG-693

Choose Options Below

This LCN 4414ME SENTRONIC(R) is a heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. For Push Side mount.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:

24V AC/DC
120V AC/DC

Choose Finish:

Finish 693 Black Painted Finish 693

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order non stock item with 4 week lead time
Quality and Safety:
  • Door is held open until current interruption releases mechanism and the door closes.
  • Interfaces with fire alarm systems
  • Double lever arm is specifically designed for interior doors.
  • For interiors doors 24" to 48".
  • UL listed for smoke barrier or labeled fire doors and cUL listed for self-closing doors without hold-open.
  • Tested and certified under ANSI Standard A156.4, grade 1





Available Options: Choose Options Above

  • Voltage:

    • 24V AC/DC
    • 120V AC/DC
  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors.
  • Interfaces with alarm systems -the door is held open until current interruption releases the holding mechanism and the door closes
  • SE holding solenoid is 24V AC/DC or 120V AC/DC input.
  • Templating allows 180° with hold-open points up to 160°
  • Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted
  • Shipped with a standard arm, 24V or 120V SE track, standard cover, and wood and machine screw pack.
  • Independent adjustment valves for adjusting backcheck, closing and latching speeds
  • All-weather fluid
  • Built in “On/Off” switch controls hold-open function

Style Sentronic closer/holder
Handing Handed for left or right hand doors
Door Width Interior doors from 34" to 48"

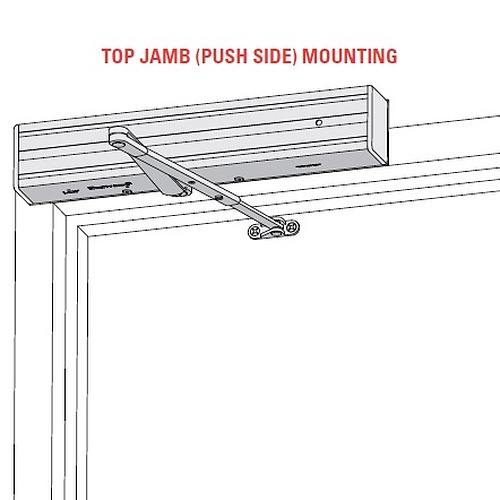

Mounting Push Side, Top Jam

More Info


The LCN 4414ME is a closer/holder that will hold a fire or smoke barrier door in the open position, at one point, until it is released, due to an emergency, by the alarm system it is connected to. It can be mounted on the push or pull side of the door depending on the properties of the application. The wiring can be concealed or surfaced.
