LCN 5031

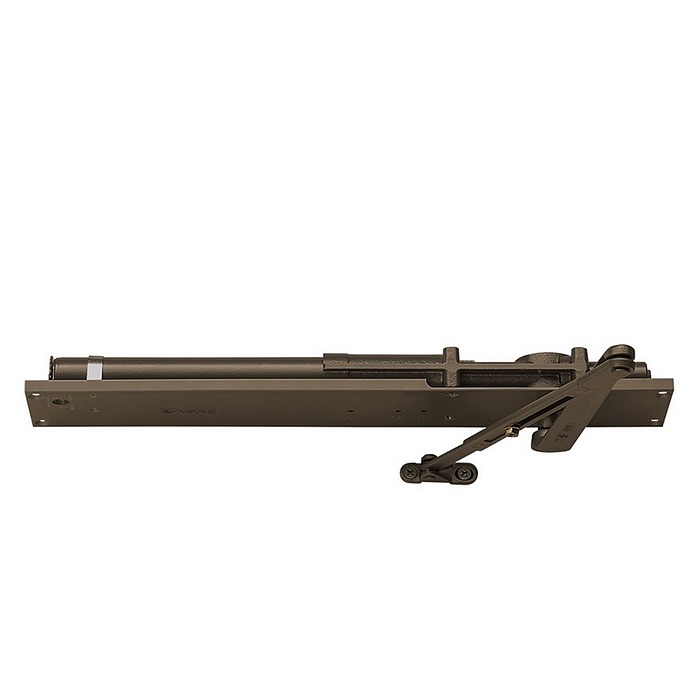

Special Order Heavy Duty Concealed Overhead Door Closer for Aluminum Doors

Quick Product Details

  • Concealed Overhead Door Closer
  • Size 1 Spring
  • For aluminum doors
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 5031

Choose Options Below

This LCN 5031-695 is a concealed overhead door closer for aluminum doors. Its size 1 spring will accommodate interior doors up to 36" wide with a 5lb opening force for ADA compliance. The closing power of this closer may be increased by 50%.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.




  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door


Choose Finish:

695 695


Special order non stock item with 4-5 week lead time
Quality and Safety:
  • UL listed with regular arms for self-closing doors.
  • Tested and certified under ANSI Standard A156.4.

Available Options: Choose Options Above

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)
  • Finish:

Product at A Glance

  • Single acting cylinder in head frame
  • Exposed arm on push side of door
  • Shipped with regular arm, mounting/finish plate and wood and machine screw pack
  • Aluminum frame requires minimum 1-3/4” x 4-1/2” tube
  • Adjustable backcheck, latch speed and closing speed
  • Closing power of the 5031 closer complies with 5lb opening force for ADA
Style Concealed Overhead Door Closer
Grade Heavy Duty
Handing Handed
Door Width - Interior Doors: Up to 36"
Finish Sprayed Dark Bronze 695

More Info

This overhead concealed door closer features a single acting cylinder in the head frame as well as an exposed arm on the push side of the door. It is supplied with adjustable backcheck to ensure that the door does not bang into the wall when opening. The latch speed and closing speed are also adjustable to accommodate the needs of your door.
