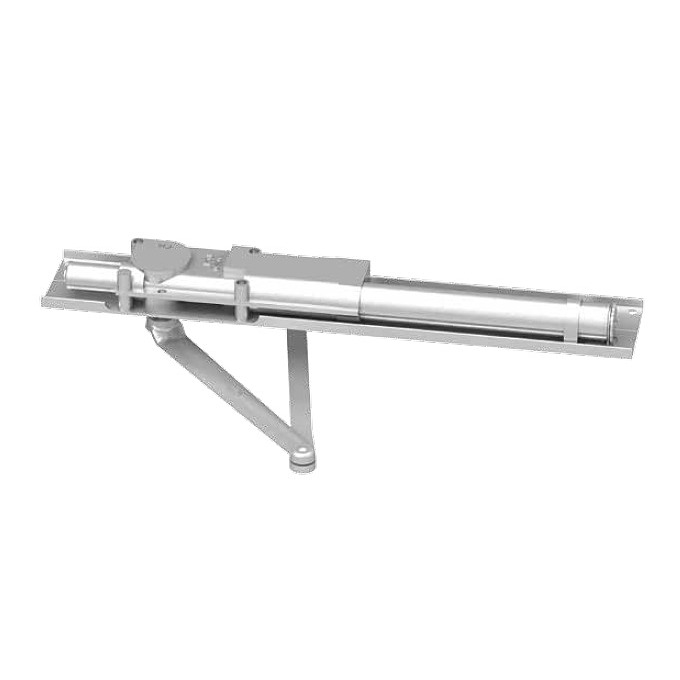

LCN 5034-AL

Heavy Duty Concealed Overhead Door Closer for Aluminum Doors

Quick Product Details

  • Concealed Overhead Door Closer
  • Size 4 Spring
  • For aluminum doors
  • Heavy Duty
SKU: 5034-AL

Price: $640.00 /each

Choose Options Below

This LCN 5034-AL is a concealed overhead door closer for aluminum doors. Its size 4 spring will accommodate interior doors from 38" to 48" wide and exterior doors from 30" to 36" wide. The closing power of this closer may be increased by 50%.

  • In Stock!
  • Order in the next 33 hours 30 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $640.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.







  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door



Overview


Quality and Safety:
  • UL listed with regular arms for self-closing doors.
  • Tested and certified under ANSI Standard A156.4.

Available Options: Choose Options Above

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)

Product at A Glance

  • Single acting cylinder in head frame
  • Exposed arm on push side of door
  • Shipped with regular arm, mounting/finish plate and wood and machine screw pack
  • Aluminum frame requires minimum 1-3/4” x 4-1/2” tube
  • Adjustable backcheck, latch speed and closing speed
  • Closing power of the 5034 closer may be increased 50%
  • Specify next higher size closer where strong drafts exist
Style Concealed Overhead Door Closer
Grade Heavy Duty
Handing Handed
Door Width - Interior Doors: 38" to 48"
- Exterior Doors: 30" to 36"
Finish Sprayed aluminum (689)

This overhead concealed door closer features a single acting cylinder in the head frame as well as an exposed arm on the push side of the door. It is supplied with adjustable backcheck to ensure that the door does not bang into the wall when opening. The latch speed and closing speed are also adjustable to accommodate the needs of your door.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Heavy Duty Concealed Overhead Door Closer for Aluminum Doors
