LCN 6440

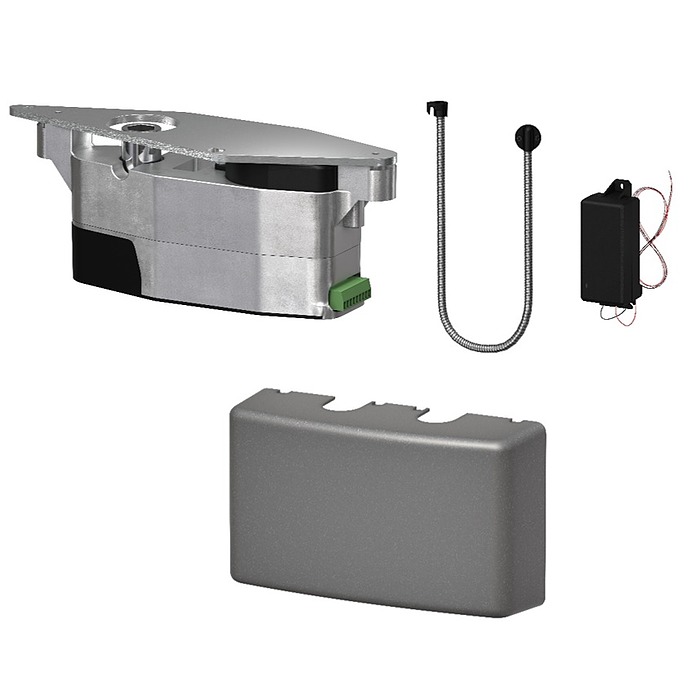

6440 Compact Automatic Operator

Quick Product Details

  • First of its kind, modular solution, enables reuse of existing hardware
  • Motor gearbox assembly connects to a standard 4040XP with a mounting plate and just 4 screws
  • Electrified module drives open mechanical closer
Price: $833.00 /each

SKU: 6440

Choose Options Below

The unique and modular design makes the COMPACT operator easy to install. Motor gearbox assembly connects to a standard 4040XP with a mounting plate and just 4 screws. You must have an installed 4040XP closer in place for this operator to function!

  • Stock Item
  • Order in the next 23 hours 42 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $833.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689-Sprayed Aluminum 689-Sprayed Aluminum
695- Sprayed Dark Bronze 695- Sprayed Dark Bronze

Overview

  • The COMPACT operator leverages the trusted 4040XP mechanical closer.
  • You must have an installed 4040XP closer in place for this operator to function!
  • Adjustments can be made to the 4040XP mechanical closer using the regulation valves for main and latch speed.
  • Compatible with an LCN 4040XP cylinders with REG or Rw/PA arms.
  • Can accommodate doors up to 185 lbs.
  • All electronic programming is done via the user interface (UI) on the module.
  • Audible and visual indicators provide feedback through the calibration process.
  • Electronic Features include: - Opening Speed - Hold Open Duration - Power Boost (On/Off) - Motor (On/Off) - Receipt of Fire Signal - Receipt of Actuation Signal.
  • Power boost to overcome interior stack pressure and allow for lower spring settings.

Available Options: Choose Options Above

Product at A Glance

  • Certified to UL10C, UL325 and UL228
  • Certified to ANSI Standard A156.19
  • Compliant with ANSI Standard A117.1
Mounting Pull Side (Door Mount) Parallel Arm (Door Mount) Top Jamb (Push Side Frame Mount)
Voltage 24VDC input
Compatiblity Compatible with 3 different 4040XP mounting configurations
Actuators Wireless or hardwired actuators
Power Input Configurable power input to allow for simple wall plug-in or external power supply
On-board Power Supply 24VDC 75mA to power RF receiver
Header Dimensions 12 1⁄4" W x 7 1⁄4" H x 3 3⁄4" D
