Markar Architectural Products FM300-SS

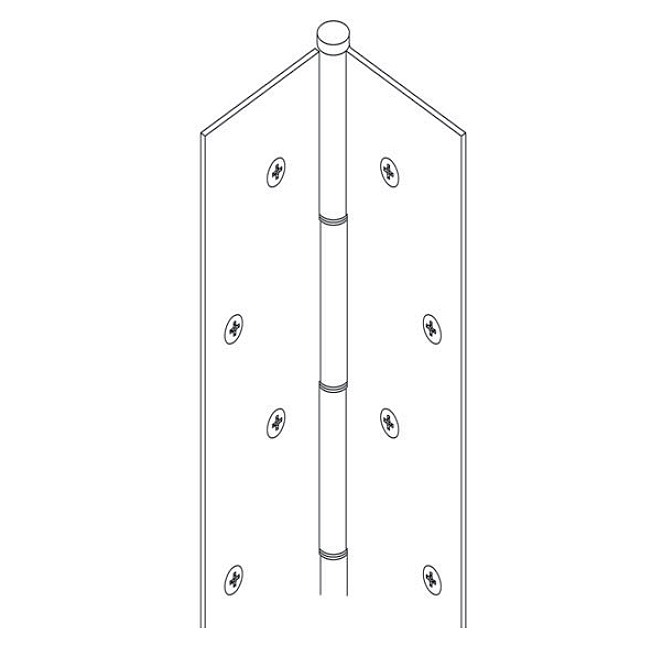

Fire-Rated Stainless Steel Pin & Barrel Continuous Hinge

Quick Product Details

  • Heavy-duty 14 gauge Stainless Steel
  • Supports weights up to 600 lbs. 4' 0 wide

Price: $255.00 /each

Choose Options Below

This edge-mounted (full mortise ) pin and barrel FM300 hinge is used high traffic, high abuse doors. The hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $255.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size:

7 foot
8 foot +$45.00

Choose Satin Stainless steel:

Finish US32D Satin Stainless steel Finish US32D Satin Stainless steel


  • Fire rated,3 hours- hollow metal doors, 90 minutes- hollow metal and composite core wood fire doors, 20 minutes- wood doors.
  • ANSI/BHMA Standard A156.26 Grade 1.
  • Heavy-duty 14 gauge, 304 stainless steel.
  • Mounting hardware fasteners concealed when door is closed.
  • 3/16" diameter barrel type hinges, 304 stainless steel pin (rod)
  • Fasteners concealed when door is closed.
  • Each knuckle 2", including nylon bearing at each separation for a quiet, smooth, self-lubricating operation.

Available Options: Choose Options Above

  • Size:

    • 7 foot
    • 8 foot
  • Satin Stainless steel:

    • Finish US32D Satin Stainless steel



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
