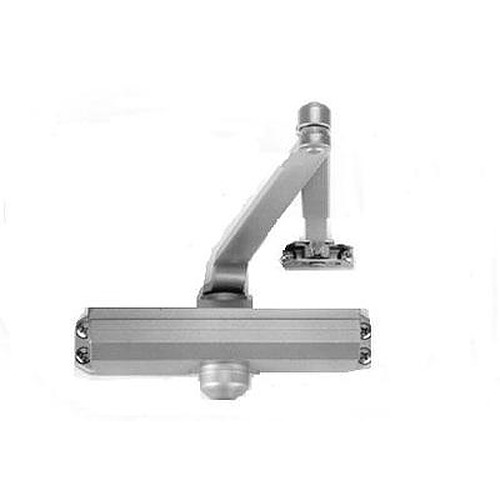

Norton 1601-696

Special Order Aluminum Storefront Door Closer Satin Brass Finish

Price: $70.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 1601-696

Choose Options Below

This Norton 1601 is a heavy duty, aluminum, storefront door closer. This closer can be applied to interior doors that are between 32" and 48" wide and exterior doors that are between 30" and 48 " wide. The spring size is adjustable for size 1 to 6 and shipped set to size 4 for 36" wide doors.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $70.00

Choose 696:

Sprayed Satin Brass Sprayed Satin Brass


Suited for:
  • Satin brass painted finish-696
  • Interior and exterior doors with narrow stile aluminum frame.

Quality and Safety:
  • ANSI/BHMA A156.4, Grade 1 certified.
  • 1601 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard
  • Usage exceeds 10 million cycles (UL).
  • UL10C compliant for positive pressure.
  • UL listed for labeled fire doors with non-hold open arms.
  • 15 year limited warranty.


Available Options: Choose Options Above

  • 696:

    • Sprayed Satin Brass

Product at A Glance

  • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting.
  • Adjustable spring size 1- 6 (shipped set at size 4 for 36” doors)
  • Mounting holes are spaced 3/4” vertically x 9-1/16" horizontally center to center
  • Cast aluminum body
  • Standard, separate and independent latch-speed, sweep-speed and backcheck intensity valves
Style Aluminum Storefront Door closer
Door Handing Non-handed
Door Width - Interior Doors: 32" - 48"
- Exterior Doors: 30" to 48"
Opening Degrees 180 degrees - condition permitting
Projection 2-7/8"

More Info

The Norton 1600 series heavy duty door closers will satisfy  all your needs in your exterior and interior door applications. The 1600 is available with a wide variety of options and features to choose from. This 1601 closer, is for interior doors that measure between 32” and 48” in width and for exterior doors that measure between 30” and 48” in width.
