Norton 6332-690

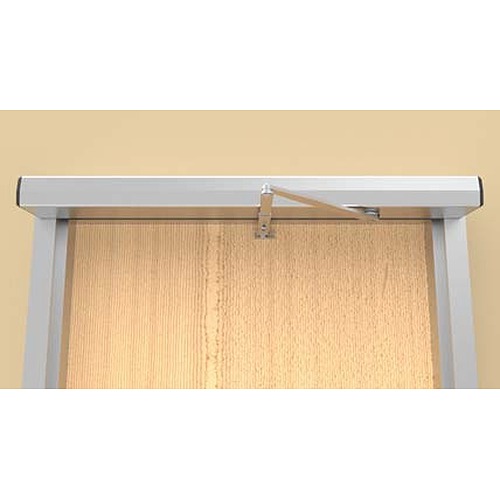

Special Order Low Energy Push Side Power Door Operator

Quick Product Details

  • Interior or exterior doors up to 200LBS
  • Push side mounting
  • Non handed
  • Unique design with slim profile
  • Finish-Dark Bronze Painted,690
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 6332-690

Choose Options Below

The Norton 6300 Series slim profile Low Energy Operator offers a broad set of intelligent functions, such as latch boost, latch retraction and obstruction detection to safely secure a variety of moderate to high traffic openings.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Choose Finish:

689 Aluminum Painted 689 Aluminum Painted

Overview

Special order non stock item with 4 week lead time.
  • Door size: minimum width 36", maximum width 48", maximum weight 200 lbs
  • Cover spans full frame 36" door only.
  • ​​Complies with requirements for the Americans with Disabilities Act (A.D.A)
  • Activated by push button, hands-free and RF devices, not included.
  • Door opening 110° to 135° (depending on reveal).
  • Power assist.
  • Push and go (selectable).
  • Obstruction detection (open and close).
  • Latch boost.
  • Selectable mode switch (off, on, hold open).
  • Adjustable opening force.
  • Adjustable closing power.
  • 2 year limited warranty.

Available Options: Choose Options Above

Product at A Glance

  • Minimum top rail 2-1/4".
  • ANSI/BHMA A156.19 certified.
  • UL325/991 certified.
  • UL10C listed for positive pressure fire test.
  • Power input 120 VAC, 3A, 60Hz.
  • Current draw 1.5A.
  • Power output 24VDC @ 1.3A max draw (less accessories).
Power Assist Senses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.Door opens only as far as it is moved manually, then closes once released
Push and Go (selectable) As the door is manually opened, the operator "senses" movement and opens door to the full-open position
Obstruction Detection Open- Door closes if it hits an obstruction while opening.Close - Door will reverse to open position if it hits an obstruction while closing
Motor Startup Delay Delays operator opening for locking hardware
Infinite Hold Open Door will hold open at set position until power is turned off
