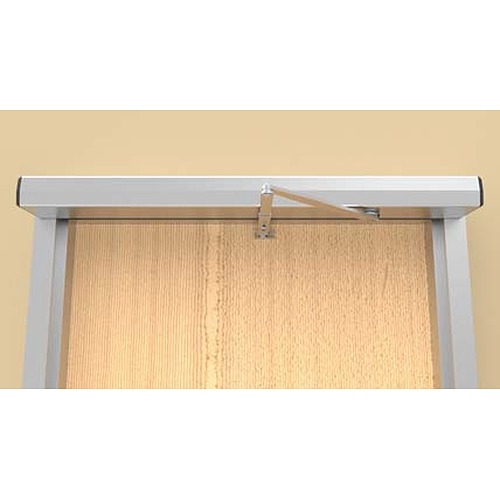

Norton 6332

Low Energy Push Side Power Door Operator

Quick Product Details

  • Interior or exterior doors up to 200LBS
  • Push side mounting
  • Non handed
  • Unique design with slim profile
  • For moderate to high traffic applications
Price: $3,356.00 /each

SKU: 6332

Choose Options Below

The Norton 6300 Series slim profile Low Energy Operator offers a broad set of intelligent functions, such as latch boost, latch retraction and obstruction detection to safely secure a variety of moderate to high traffic openings.

  • Stock Item
  • Order in the next 4 hours 56 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $3,356.00

Choose Finish:

689 Aluminum Painted 689 Aluminum Painted


  • Door size: minimum width 36", maximum width 48", maximum weight 200 lbs
  • Cover spans full frame 36" door only.
  • ​​Complies with requirements for the Americans with Disabilities Act (A.D.A)
  • Activated by push button, hands-free and RF devices, not included.
  • Door opening 110° to 135° (depending on reveal).
  • Power assist.
  • Push and go (selectable).
  • Obstruction detection (open and close).
  • Latch boost.
  • Selectable mode switch (off, on, hold open).
  • Adjustable opening force.
  • Adjustable closing power.
  • 2 year limited warranty.

Available Options: Choose Options Above

Product at A Glance

  • Minimum top rail 2-1/4".
  • ANSI/BHMA A156.19 certified.
  • UL325/991 certified.
  • UL10C listed for positive pressure fire test.
  • Power input 120 VAC, 3A, 60Hz.
  • Current draw 1.5A.
  • Power output 24VDC @ 1.3A max draw (less accessories).
Power Assist Senses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.Door opens only as far as it is moved manually, then closes once released
Push and Go (selectable) As the door is manually opened, the operator "senses" movement and opens door to the full-open position
Obstruction Detection Open- Door closes if it hits an obstruction while opening.Close - Door will reverse to open position if it hits an obstruction while closing
Motor Startup Delay Delays operator opening for locking hardware
Infinite Hold Open Door will hold open at set position until power is turned off



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
