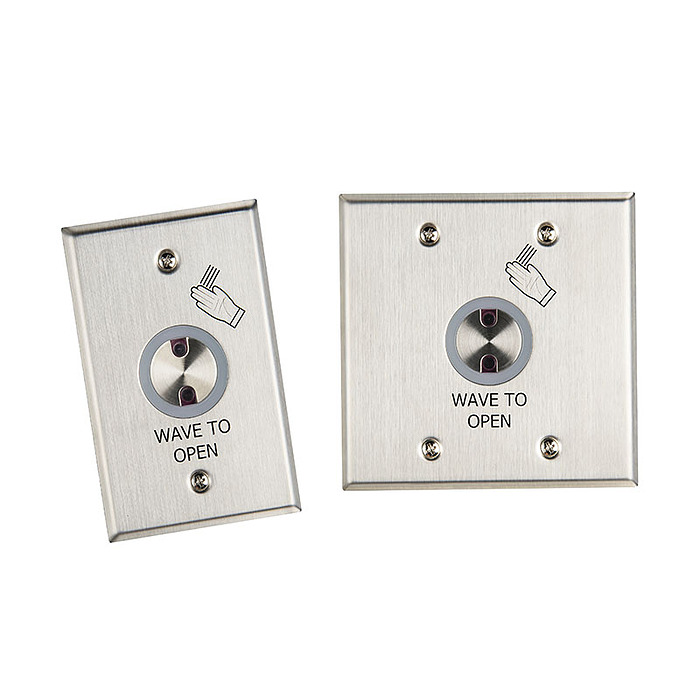

Norton 700-Doppler

Touch Less Wall Switch

Quick Product Details

  • Touchless Wall Switch
  • Used With: Norton 5600 series Powermatic, 5700 Series LEO(R) and 6900 Series Powermatic
SKU: 700-Doppler

Price: $270.00 /each

This Norton 697 is a wall switch that requires no physical activation. Its Doppler radar sensor is activated through movement in the area.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Quantity Discounts Available!
  • Order 19+ $TBD /ea.

Have a question? Need help?
Call Us: 1-866-749-7661

Product at A Glance

  • Doppler radar sensor requires movement for activation.
  • Standard with single gang and double gang covers.
  • Variable relay-hold time from 1 to 10 seconds.
  • Range of 2" to 24"activating area - field adjustable.
Style Touchless Wall Switch
Used With Norton 5600 series Powermatic, 5700 Series LEO(R) and 6900 Series Powermatic
Dimensions Width: 2-3/4" (single) x 4-1/2" (double), Height: 4-1/2", Depth: 2"
Wiring Surface mounted using a wall box or may be installed within a conduit box
Voltage 12 to 24VAC +/- 10%, 12 to 24VDC +30%/-10%.
Radiated Frequency 24.125 GHz
Main Frequency 50 to 60Hz
Output Relay contact rating (max voltage): 60 VDC/125VAC
Temperature Range -30°F to 131°F

More Info

To create a completely touch-free environment in applications such as restrooms, examination rooms and laboratories, use the Norton 697 touchless wall switch. This switch requires to no physical activation. Just wave your hand the front of the device and the door’s motor will be activated.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Norton 5600 Hands-Free thumbnail

Norton 5600 Hands-Free
