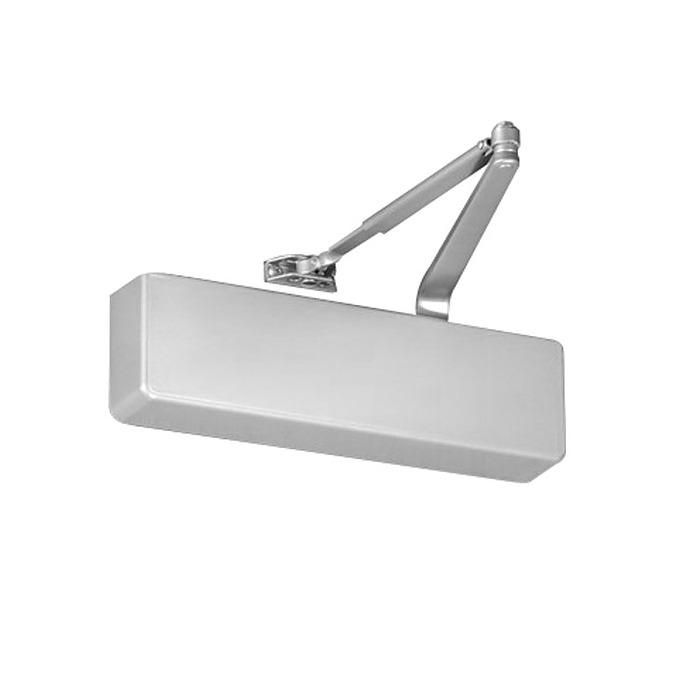

Norton 7500M-689

Special Order Institutional Door Closer for High Traffic Openings with Metal Cover

Quick Product Details

  • Institutional Door Closer
  • Heavy Duty
Price: $472.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 7500M-689

Choose Options Below

This Norton 7500 institutional door closer is designed to meet the requirements necessary in very high demanding commercial and institutional applications. Its spring size can be adjusted from 1 to 6. Its body is constructed of high quality cast aluminum. Comes with a metal cover.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $472.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

No Hold Open

Help Me Decide

  • Hold Open - A door closer arm with the capability of holding the door in the open position until manually closed.
  • Hold Open arm door closers are not permitted to be used on fire door assemblies.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)

Help Me Decide



Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Suited for:
  • High Traffic commercial or institutional applications

Quality and Safety:
  • ADA compliant, Barrier Free (Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors.
  • 7500 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors.
  • UL10C listed for positive pressure fire test.
  • Usage exceeds 15 million cycles (UL)
  • 25 year limited warranty.

Special Orders Available: Contact us directly to place your special order.

Available Options: Choose Options Above

  • Hold Open: info icon

    • No Hold Open
  • Finish: info icon

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • For high traffic openings
  • Adjustable spring sizes 1-6
  • Tri-Style packaging, regular arm, top jamb and parallel arm mounting
  • Standard, separate and independent, latch-speed, sweep-speed and backcheck intensity valves
  • Mounting holes for closer body are spaced 2-3/8” vertically and  6-3/4” horizontally, 13-5/8” long with standard cover
  • Cast aluminum body
  • Metal Body (Handed)
Style Institutional Door closer
Grade Heavy duty
Door Handing Handed
Door Width Exterior: 30" to 48"
- Interior: 32" to 54"
Opening Degrees 180 degrees - condition permitting
Projection 2-3/16"

More Info

The 7500 series, known for its strength and durability suitable for very demanding applications, will serve you faithfully for years to come with utmost efficiency. In addition, it is backed by a limited warranty for 25 years to guarantee your satisfaction. The high quality construction cast aluminum body only adds to the terrific superiority of this closer.





How to Properly Install a Norton 7500 Series Door Closer thumbnail

How to Properly Install a Norton 7500 Series Door Closer
