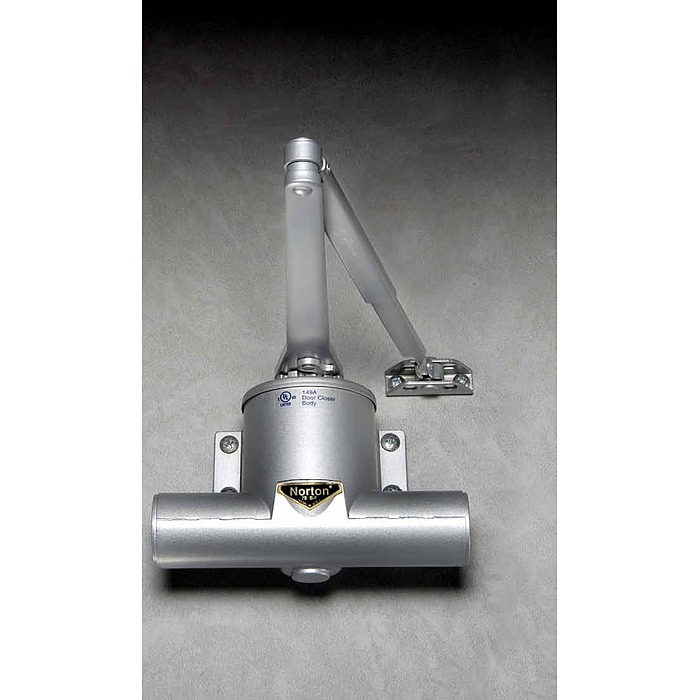

Norton 78B/D-RA-690

Special Order Traditional Surface Closer

Quick Product Details

  • Traditional Surface Closer
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 78B/D-RA-690

Choose Options Below

This Norton 78-B/F traditional surface closer is designed for traditional and period decor while at the same time providing modern door control features. This door closer matches installations of the Yale 1900 Series traditional surface door closers.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door


Choose Finish:

690 Dark Bronze Painted 690 Dark Bronze Painted


Special order non stock item with 4 week lead time
  • Meets ANSI/BHMA A156.4 - Grade 3 specifications
  • Closers with non-hold open arms are U.L. Listed for self-closing fire doors, UL10C compliant


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Adjustable Size 1902/4 size 2-4.
  • Adjustable closing-speed, latch-speed and backcheck
  • Features an aluminum alloy shell
  • Non-Hold Open Regular arm supplied standard with closer
  • The Norton traditional door closer has the same footprint and feature set as the Yale 1900 series door closer.
  • Adjustable Spring Power. The closing force can be increased by at least 50% over the minimum closing force for each closer size.
  • Rack and Pinion design
  • Mounting holes in body are spaced 1-3/8" vertically and 4-1/8" horizontally.
Style Surface Closer
Handing Handed - field reversible

More Info

Norton 78-B/F  traditional closers are unique. They are designed with a traditional look where preferred for the decor, yet their mechanism is constructed using current technology to bring you high quality and excellent performance. These closers will match the installation of Norton 78 traditional surface door closers.
