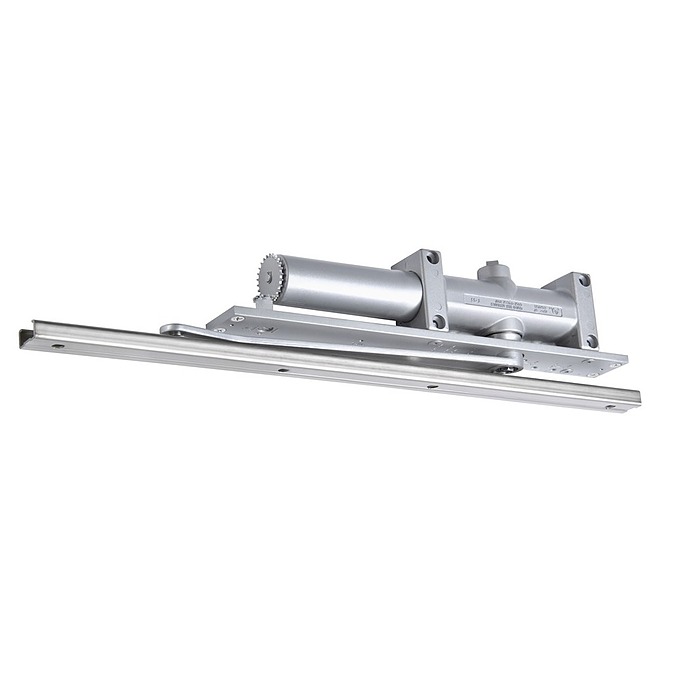

Norton 7900

Concealed Overhead Concealed Door Closer

Quick Product Details

  • Steel track and slider
  • Shock Absorbing door stop
  • Multi-size 1-6 spring
Price: $565.00 /each
Special Order non-stock item Requires 4 week lead time

SKU: 7900

Choose Options Below

The Norton 7900 series overhead concealed closer offer extremely durable operation with the vandal resistance and concealment necessary for high security and high end architectural openings.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was purchased from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $565.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview

Special order non stock item with 4 week lead time
  • Closer is concealed in the header of hollow metal, aluminum or wood frames.
  • Installation requires a minimum 4" high frame header.
  • Adjustable sweep speed,latch speed,hex-key operated.
  • Adjustable backcheck cushioning,hex-key operated.
  • Adjustable backcheck positioning,hex-key operated.



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

Door Thickness 1-3/4" - 2-1/4" .
Slide Track Mounted into a recess prepared in the top rail
Concealed Arm Closer arm is concealed when the door is closed. Requires a 3/8"deep stop side door cutout for arm clearance
Maximum Door Size Wood or Metal- Interior 48", Exterior 36"
Rack & Pinion Operation A smooth power transmission through entire opening and closing cycle is provided by a long addendum gear form

More Info

  • ANSI A156.4, Grade 1
  •  UL / cUL listed for use on fire rated doors
  •  UL10C listed for positive pressure fire test
  • Comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
