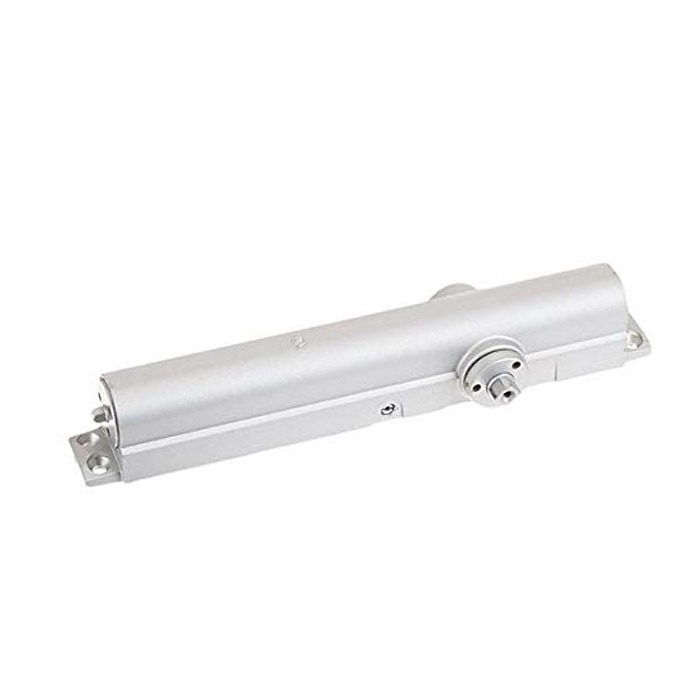

Norton 8101LAP

Special Order Multi-Sized Architectural Door Closer Body Only

Quick Product Details

  • Institutional Door Closer Body Only
  • Without Cover
  • Fully Adjustable Sizes 1-6
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8101LAP

Choose Options Below

This Norton 8101 is the closer body used for the 8301 and 8501 surface closers from Norton. This high quality, durable door closer is known for its longevity and versatility. This closer complies with ADA barrier free requirements and it exceeds 15 million cycles of usage.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)
693 (Black Painted) Available for NHO Only 693 (Black Painted) Available for NHO Only

Overview

Non-Stock Special Order with 4 week lead time


Suited For:
  • High Traffic commercial or institutional applications

Quality and Safety:
  • ANSI/BHMA A156.4, Grade 1 certified
  • ADA compliant, Barrier Free (Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors)
  • All Norton closers are listed by Underwriters Laboratories for labeled fire doors.
  • Usage exceeds 15 million cycles (UL)
  • UL10C compliant for positive pressure
  • 25 year limited warranty

Special Orders Available: Contact us directly to place your special order.


Available Options: Choose Options Above

Product at A Glance

  • Architectural door closer body
  • Adjustable spring size 1 through 6 with backcheck
  • Standard, separate and independent, latch-speed, sweep-speed and backcheck intensity valves
  • Mounting holes are spaced 3/4” vertically x 12" horizontally with 2-1/8” projection (standard covers)
  • Cast aluminum body
  • Rack-and-pinion design
Style Architectural Door closer
Grade Medium duty
Door Handing Non-handed
Door Width Maximum 48" interior and exterior doors
Opening Degrees 180 degrees - condition permitting
Projection 2-1/8"
