Norton 8301

Multi-Sized Architectural Door Closer with Slim Cover

Quick Product Details

  • Architectural Door Closer
  • Slim Line Cover
Price: $99.00 /each

SKU: 8301

Choose Options Below

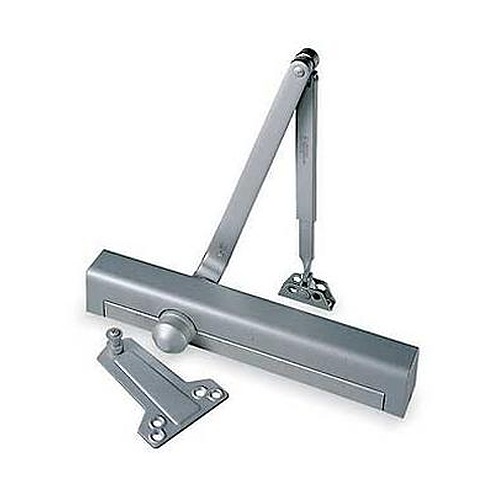

This Norton 8301 door closer is a medium duty reliable and durable product . Its architectural covers offers a decorative look to a door closer. This door closers includes a slim line cover and it is constructed with rack and pinion design.

  • In Stock!
  • Order in the next 15 hours 47 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $99.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Choose Hold Open:

No Hold Open
Hold Open (H) +$15.00

Help Me Decide

  • Hold Open - A door closer arm with the capability of holding the door in the open position until manually closed.
  • Hold Open arm door closers are not permitted to be used on fire door assemblies.

Replacing Your Door Closer?

Product Finder

Overview


Suited for:
  • High Traffic commercial or institutional applications

Quality and Safety:
  • ANSI/BHMA A156.4, Grade 1 certified
  • ADA compliant, Barrier Free (Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors)
  • All Norton closers are listed by Underwriters Laboratories for labeled fire doors.
  • Usage exceeds 15 million cycles (UL)
  • UL10C compliant for positive pressure
  • 25 year limited warranty

Special Orders Available: Contact us directly to place your special order.


Available Options: Choose Options Above

  • Finish:

  • Hold Open: info icon

    • No Hold Open
    • Hold Open (H)

Product at A Glance

  • Architectural door closer with slim line cover
  • Adjustable spring size 1 through 6 with backcheck
  • Tri-Style® packaging standard, regular arm, top jamb and parallel arm mounting
  • Standard, separate and independent, latch-speed, sweep-speed and backcheck intensity valves
  • Mounting holes are spaced 3/4” vertically x 12" horizontally with 2-1/8” projection (standard covers)
  • Cast aluminum body
  • Rack-and-pinion design
Style Architectural Door closer
Grade Medium duty
Door Handing Non-handed
Door Width Maximum 48" interior and exterior doors
Opening Degrees 180 degrees - condition permitting
Projection 2-1/8"

More Info


This closer is the perfect combination of quality, reliability and architectural design. It is a durable, medium duty closer supplied with a decorative slim line cover to spice up the decor of your opening. The adjustable spring size makes this closer versatile for use on nearly all size doors. It is non-handed and has the capacity to open up to 180 degrees.
