Norton 8501BF-696

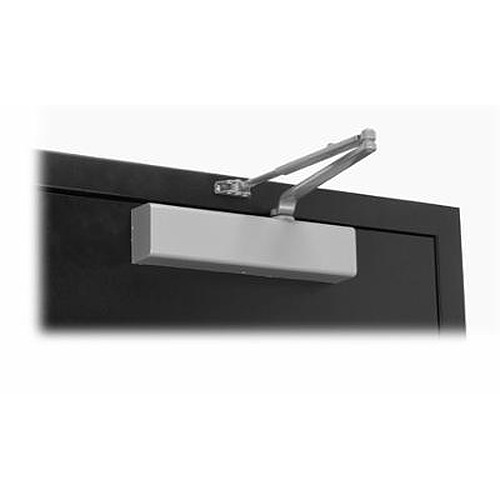

Special Order Multi-Sized Architectural Door Closer with Full Cover

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8501BF-696

Architectural covers give a decorative look to a door closer. The Norton 8501 door closer includes a full size cover.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special order item with 4 week lead time.
  • Architectural door closer with full size cover
  • Satin brass painted finish.
  • Adjustable size 1 through 6 with backcheck
  • Tri-Style® packaging standard, regular arm, top jamb and parallel arm mounting
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • For interior and exterior doors to 48" wide
  • ADA compliant-Barrier free
  • Usage exceeds 10 million cycles

More Info

  • ADA compliant, Barrier Free (Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors )
  • Non-handed
  • Mounting holes are spaced 3/4" vertically x 12" horizontally with 2-1/8" projection (standard covers)
  • Cast aluminum body
  • ANSI/BHMA A156.4, Grade 1 certified
  • All Norton 8000 series closers with non-hold open arms are
    listed by Underwriters Laboratories for labeled fire doors
  • Rack-and-pinion design
  • UL10C compliant for positive pressure
  • All standard arm applications (with slim, full or metal covers) allow
    doors to swing 180 degrees, conditions permitting
    Available as a special order with Delayed Action and other finishes.Contact us directly to arrange for your special order.
