Norton ADA1028W

Special Order Wireless Interface Module For Adaez for Low Energy Operator

Quick Product Details

  • The ADAEZ WIM can be used with any ADAEZ model PRO, PLUS, COMPLETE
  • Designed to fit inside a power supply cabinet, using a supplied plastic mounting plate with double sided tape and fasteners.
SKU: ADA1028W

Price: $245.00 /each

Special Order non-stock item Requires 4 week lead time

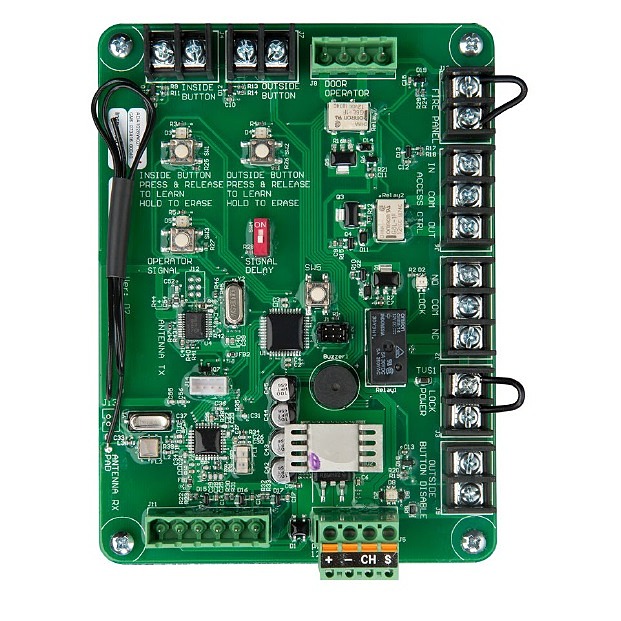

The Wireless Interface Module ADA1028W allows the ADAEZ door operator to interface to ADAEZ wired or wireless push buttons, wireless remote, an electric lock, fire panel, access control, and an outside pushbutton disable contact.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • The WIM (4.25”W x 5.75” H) is designed to fit inside a power supply cabinet, using a supplied plastic mounting plate with double sided tape and fasteners
Inputs:  Power input: 24VDC
  • Hardwire push buttons input: separate INSIDE and an OUTSIDE activation input
  •  Wireless push button input: separate INSIDE and an OUTSIDE RF activation input
  •  Handheld transmitter input: (p/n ADA1031 HAND-HELD-TX) interface
  •  Operator connection cable: Plug in ADA EZ swing door cable connector interface
  • Lock power: Dry contact SPDT to power an electric lock
  •  Outside push button disable: privacy feature
Outputs:  Wireless Output: RF signal to activate ADAEZ door opener
  •  Output Contacts: SPDT dry contact output for AUX signal
  •  Lock Contacts: SPDT dry contact output for LOCK
  •  Access Control Contacts: indicates valid Unlock signal
  •  Signal Delay Timer: 1.5 second lock release delay
  •  Emergency Interface Relay (EIR): disables signal inputs
