Norton JL7500H-M-689

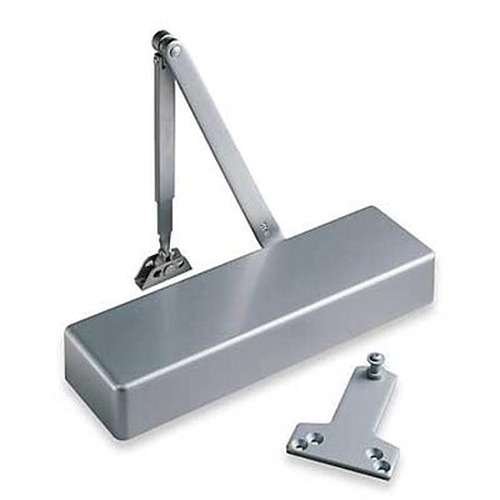

Special Order Hold OpenTop Jam Mount Door Closer for High Traffic Openings

Quick Product Details

  • Institutional Door Closer
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: JL7500H-M-689

This Norton JL7500 top jam institutional door closer is designed to meet the requirements necessary in very high demanding commercial and institutional applications. Its spring size can be adjusted from 1 to 6. Its body is constructed of high quality cast aluminum. Includes 7786 back plate.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • Top jamb Installation with hold open arm. Supplied with 7786 back plate 2-3/4" - 6-3/4" reveal, 180° swing.
  • 7786 plate-For use where the narrow top rail of the door prevents the closer from being mounted directly to the door surface. This drop plate must be used for
    closer mounted on a top rail between 1-7/8" and 3-3/8" in height.
  • Finish sprayed aluminum-689..
  • High Traffic commercial or institutional applications
  • ADA compliant, Barrier Free (Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors).
  • 7500 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors.
  • Usage exceeds 15 million cycles (UL).

Product at A Glance

  • For high traffic openings.
  • Adjustable spring sizes 1-6.
  • Standard, separate and independent, latch-speed, sweep-speed and backcheck intensity valves.
  • Mounting holes for closer body are spaced 2-3/8” vertically and  6-3/4” horizontally, 13-5/8” long with standard cover.
  • Cast aluminum body.
  • Metal cover.
Style Top Jam mount Institutional Door closer
Grade Heavy duty
Door Handing Non-handed
Door Width - Exterior: 30" to 48"
- Interior: 32" to 54"
Opening Degrees 180 degrees - condition permitting
Projection 2-3/16"

More Info


The 7500 series, known for its strength and durability suitable for very demanding applications, will serve you faithfully for years to come with utmost efficiency. In addition, it is backed by a limited warranty for 25 years to guarantee your satisfaction. The high quality construction cast aluminum body only adds to the terrific superiority of this closer.
