Norton UNI78B/D-H-690-36

Special Order Traditional Surface Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: UNI78B/D-H-690-36

Choose Options Below

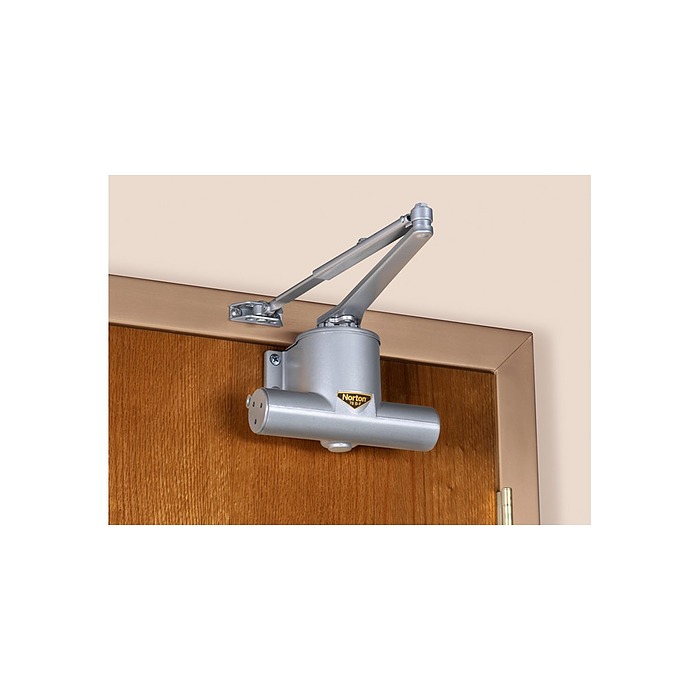

The Norton 78B/F series traditional surface closer. The78B/F series door closers are designed for traditional and period decor while at the same time providing modern door control features. This door closer matches installations of the Yale 1900 Series traditional surface door closers.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order non stock item with 4 week lead time.
  • Adjustable Size 78B/D-H size 2-4,
  • With Unitrol®Parallel hold open arm for a 36" wide door.
  • Dark bronze finish.
  • Adjustable Closing speed/latch speed and backcheck.
  • Aluminum alloy shell.
  • Field reversible but proper hand of door should be ordered.
  • Mounting holes in body are spaced 1-3/8" vertically and 4-1/8" horizontally.
The Yale traditional door closer has the same footprint and feature set as the Norton 78 Series door closer.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Closers with non-hold open arms are U.L. Listed for self-closing fire doors, UL10C compliant
  • Meets ANSI/BHMA A156.4 - Grade 3 specifications
  • Adjustable Spring Power.The closing force can be increased by at least 50% over the minimum closing force for each closer size.
  • Rack and Pinion design.
