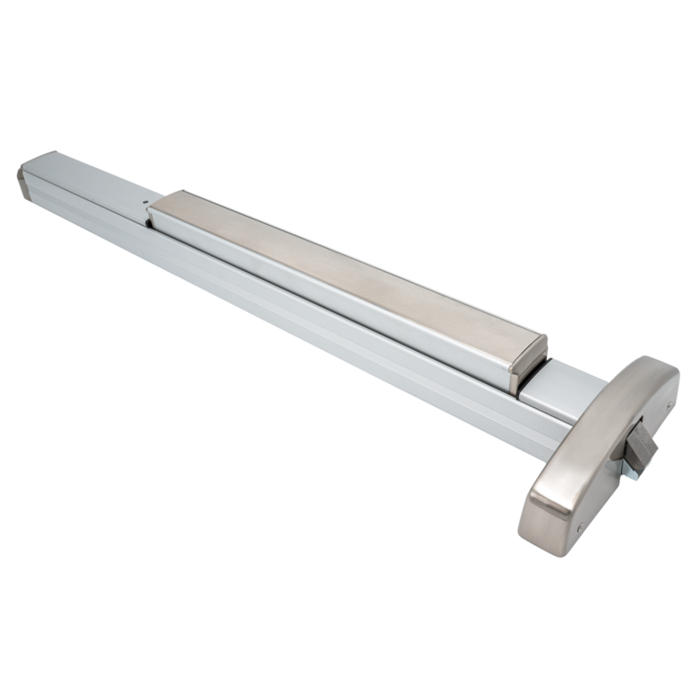

6400 Series - Rim - Narrow Stile

PDQ 6400R-EO

6400 Series - Rim - Narrow Stile

Quick Product Details

  • For increased strength, it features a cast chassis support
  • When pressing and releasing the push bar, the cush spring ensure that it'll have quiet operation
  • The heavy-duty flush end caps on the 6400R exit device, provide superior pry resistance
  • For seamless functionality, a standard roller strike is included
  • The 6400R is stocked in 3 different finishes: 626(US26D), 622(US19), and 613E - call for these finishes: 605(US3), 606(US4), 630(US32D)
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 6400R-EO

Choose Options Below

Improve your security with PDQ's 6400R rim exit device. This narrow stile exit device features a strong 3/4" pullman latch. This makes it ideal for narrow stile single door applications, or double door setups with a mullion. Our 6400R exit device combines functionality and aesthetics, making it perfect for those who want a sleek, narrow look.

  • Special Order
  • FREE Same-Day Shipping*When ordered before 2PM ET

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose 6400 Series Fire Rated:

Non-fire Rated
Fire Rated (RF) Option +$73.00

Choose 6400R finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)
622 - Flat Black Coated (US19) 622 - Flat Black Coated (US19)
613E -  Dark oxidized satin bronze (US10B) 613E - Dark oxidized satin bronze (US10B)
SPECIAL ORDER - 630 - Satin Stainless Steel (+ 2-4 weeks lead time) SPECIAL ORDER - 630 - Satin Stainless Steel (+ 2-4 weeks lead time) Subtract -($20.70)

Overview

Stay compliant and safe with PDQ’s 6400R rim exit device. Explore its wide range of certifications below.
  • It’s ETL UL 305 certified
  • It's ETL UL 10C and CAN/ULC-S104 listed for 3-hour fire doors. This attests to its safety in both single doors up to 4’ x 10’ and double doors with mullions up to 8' x 8' (single egress pair)
  • It's certified to meet ANSI/BHMA A156.3 Grade 1 standards
  • It has a FL #40297 ratings—+60/-65 psf for 16ga Single and +50/-50 psf for 18ga Single
  • It complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 regulations. This ensures accessibility and usability in diverse building environments
  • WARRANTY: Ten (10) year limited warranty

Available Options: Choose Options Above
