Pemko CFM95SLF-HD1-M

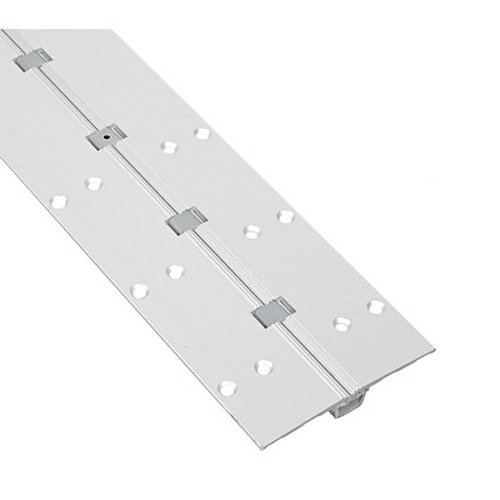

PemKonnect Full Mortise Modular Continuous Hinge

Quick Product Details

  • Modular Construction for easy delivery to job site
  • Grade 1 Heavy Duty Short Leaf Flush Continuous Hinge
  • No special tools required for installation
Price: $153.00 /each

SKU: CFM95SLF-HD1-M

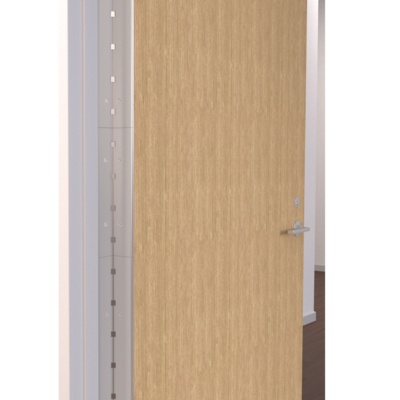

The PemKonnect Short Leaf Flush Modular Continuous Hinge packs away in a 45" box for easy transport to the job site. Warranted for the life of the opening, this may be the last hinge you will ever need to buy! Installs just as a traditional Continuous Hinge.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 37 hours 39 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

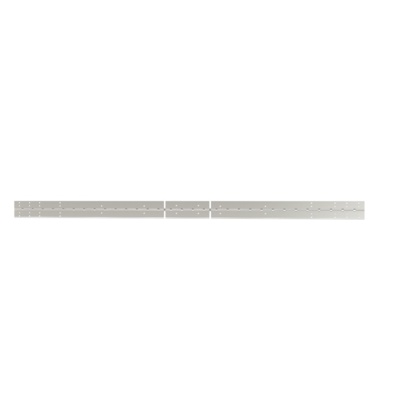

  • PemKonnect 95" hinges come in 3 hinge segments,net length 94.813"
  • Application - heavy duty for high frequency doors or heavy medium frequency doors.
  • Full Mortise- Used mainly in new construction. Hinge mounts between the edge of the door and frame.
  • Pemko HD1 Continuous Hinges support doors weighing up to 540lbs.
  • 3 Hour Fire Rated with 3 Hour Metal door and 3 Hour Fire Rated Hollow Metal Frame.
  • UL 10C Positive Pressure Rated.
  • ANSI/BHMA A156.26 and UL Certified.
  • Designed for double door applications to keep the faces of the doors flush.

Product at A Glance

  • Designed for use with doors which range between 1-3/4" to 2-1/4"
  • Fasteners are #12-24 x 11/16” Flat Head Undercut, Type C, thread-forming fasteners, no tapping required.
  • Hinge segments fit together easily.
  • Equal number of bearings as a traditional continuous hinge supports the same weight requirements.
  • No extra tools needed for assembly.

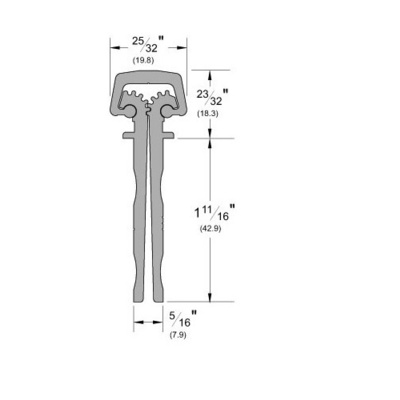

  • Minimum Hinge Clearance 5/16" .
  • Cap Width 25/32".
  • Leaf Height (to flange/frame edge side) 1-11/16"

More Info


If the PemkoHinge® must be shortened, cut the bottom only using a chop saw. This will allow metal chips to work out after the installation. Although the PemkoHinge® is not handed, the hinge becomes handed after cutting and the cut edge must be installed at the bottom of the opening.
