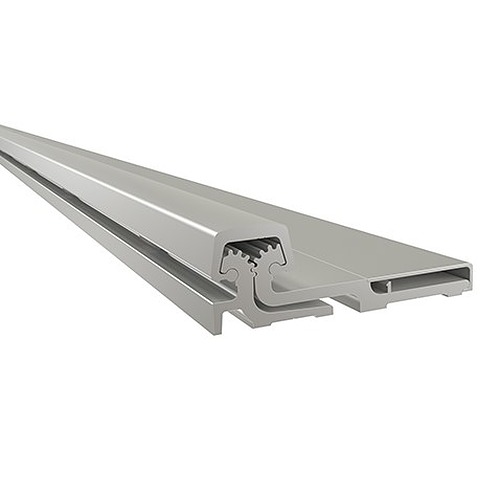

Pemko CFS83-HD1-M

PemKonnect Full Surface Modular Continuous Hinge

Quick Product Details

  • Modular Construction for easy delivery to job site
  • Grade 1 Heavy Duty Continuous Hinge
  • No special tools required for installation
Price: $153.00 /each

SKU: CFS83-HD1-M

Choose Options Below

The Pemko Full Surface Modular Continuous Hinge packs away in a 45" box for easy transport to the job site. Warranted for the life of the opening, this may be the last hinge you will ever need to buy! Installs just as a traditional Continuous Hinge.

  • Stock Item
  • Order in the next 4 hours 49 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $153.00

Choose Finish:

83 83" CLR-Clear Anodized Satin Aluminum

Overview

  • PemKonnect Application - heavy duty for high frequency doors or heavy medium frequency doors.
  • Full Surface- Used mainly in retrofit applications. Hinge mounts on the face of the door and frame
  • Pemko HD1 Continuous Hinges support doors weighing up to 540lbs
  • 3 Hour Fire Rated with 3 Hour Metal door and 3 Hour Fire Rated Hollow Metal Frame.
  • Length -83”
  • UL 10C Positive Pressure Rated

Available Options: Choose Options Above

Product at A Glance

Intended Use Designed for use with doors which range between 1-3/4" to 2-1/4"
Mounting Style Fasteners are #12-24 x 11/16" Flat Head Undercut, Type C, thread-forming fasteners, no tapping required
Utility Meets building construction and fire code requirements
Fire Rated ANSI/BHMA A156.26 and UL certified
Minimum Hinge Clearance 5/16" (7.9mm)
Cap width 25/32" (19.8mm)
Leaf Height 1-11/16" (42.9mm)
Overall Hinge Height 11/16" (17.5mm)

More Info

If the PemkoHinge® must be shortened, cut the bottom only using a chop saw. This will allow metal chips to work out after the installation. Although the PemkoHinge® is not handed, the hinge becomes handed after cutting and the cut edge must be installed at the bottom of the opening.
