Precision Hardware 2103-1703C-626W

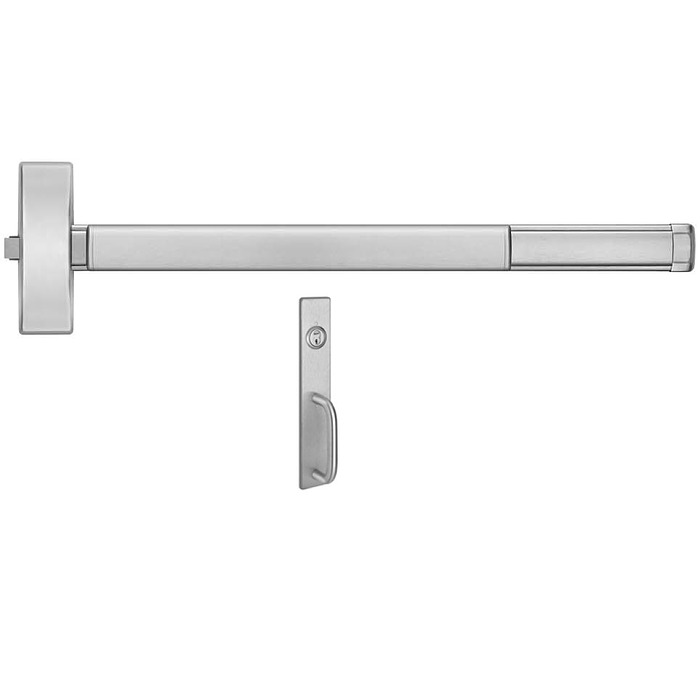

Special Order Apex Rim Exit Device with Night Latch Pull Trim with Weatherized Finish

Quick Product Details

  • Rim Exit Device
  • Night-Latch Function With Pull Trim
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2103-1703C-626W

Choose Options Below

This Precision 2103-1703C is a rim exit device with night latch function. Precision's 626W finish protects exit devices and extends product life. PRECISION's 626W finish provides the ideal solution for applications like natatoriums, water treatment facilities, and exterior gates. This specific device operates with the night-latch function and it is supplied with the 1703C pull trim.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

Door Width 3 FT
Door Width 4 FT

Help Me Decide

3 FT device fits doors 2’-7” to 3’-0”

4 FT device fits doors 3’-1” to 4’-0”

Overview


Special order non stock item with 8 week lead time
  • 626W satin chrome finish-chrome plating over brass for each exterior component.
  • 626W-protected exit devices resist rust, corrosion, and salt air over the full life of the product.
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1.
  • Certifications-MIL-STD-810G 510.6 Sand and Dust,MIL-STD-810G 521.4 Icing/Freezing Rain and MIL-STD-810G 509.6 Salt Fog.



Available Options: Choose Options Above

  • Rail Size: info icon

    • Door Width 3 FT
    • Door Width 4 FT

Product at A Glance


  • Package includes a lever and an escutcheon
  • Rim cylinder required (not included)
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4” beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Rim exit device
Grade Heavy duty
Application Single and double doors with mullion
Function Night-Latch Function with Pull Trim:
- Key retracts latch and door remains locked
Handing Non-handed
Door Thickness 1-3/4"
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"
Escutcheon Size 15" high and 2-3/4" wide
Warranty Three-year finish warranty

More Info


Rim exit devices are very useful in multiple applications to provide for a simple and safe exiting solution. Precision Hardware offers a large variety of panic hardware to suit the needs of different door openings. This 2103-1703C Apex device is operated with the night latch function with a pull trim from the outside.
