Precision Hardware 2108-V4908A -626W

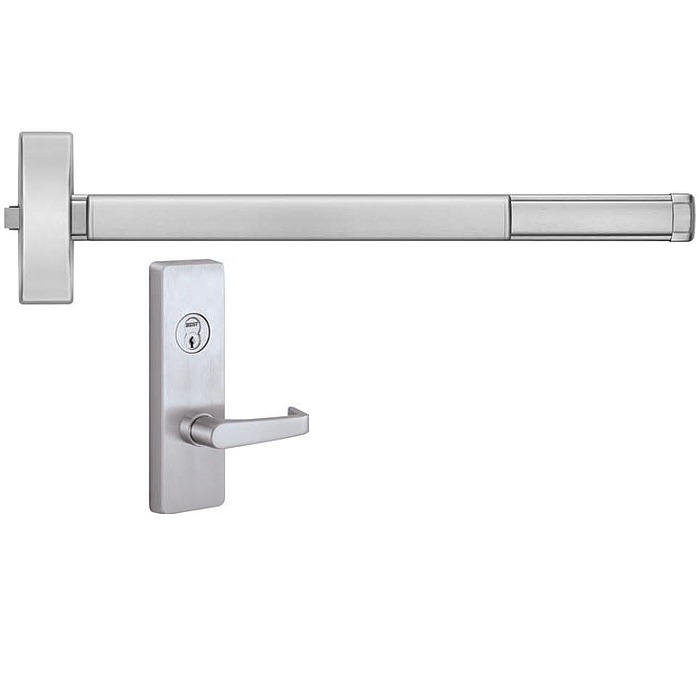

Special Order Apex Rim Exit Device with Keyed Lever Trim with Weatherized Finish

Quick Product Details

  • Rim Exit Device
  • Night-Latch Function With Pull Trim
  • Heavy Duty
  • The premium 626W finish option provides a truly weatherized finish to protect exit devices in exterior applications from environmental conditions, rust, corrosion, and salt.
SKU: 2108-V4908A -626W

Price: $1,175.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This Precision2108-V4908A -626W is a rim exit device with Keyed Lever. PRECISION's 626W finish provides the ideal solution for applications like natatoriums, water treatment facilities, and exterior gates.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $1,175.00

Choose Options

Choose Rail Size:

Door Width 3 FT
Door Width 4 FT

Help Me Decide

3 FT device fits doors 2’-7” to 3’-0”

4 FT device fits doors 3’-1” to 4’-0”

Overview


Special order non stock item with 4 week lead time
  • 626W satin chrome finish-chrome plating over brass for each exterior component.
  • 626W-protected exit devices resist rust, corrosion, and salt air over the full life of the product.
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1.
  • Certifications-MIL-STD-810G 510.6 Sand and Dust,MIL-STD-810G 521.4 Icing/Freezing Rain and MIL-STD-810G 509.6 Salt Fog.



Available Options: Choose Options Above

  • Rail Size: info icon

    • Door Width 3 FT
    • Door Width 4 FT

Product at A Glance


  • Package includes a lever and  an escutcheon
  • Rim cylinder required (not included)
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4” beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Rim exit device
Grade Heavy duty
Application Single and double doors with mullion
Function Classroom Function Trim:
- Key Locks/Unlocks lever from outside
Handing Non-handed
Door Thickness 1-3/4"
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"
Warranty Three-year finish warranty

Rim exit devices are very useful in multiple applications to provide for a simple and safe exiting solution. Precision Hardware offers a large variety of panic hardware to suit the needs of different door openings. This 2103-1703C Apex device is operated with the night latch function with a pull trim from the outside.
