Precision Hardware 2108-V4908A-4FT

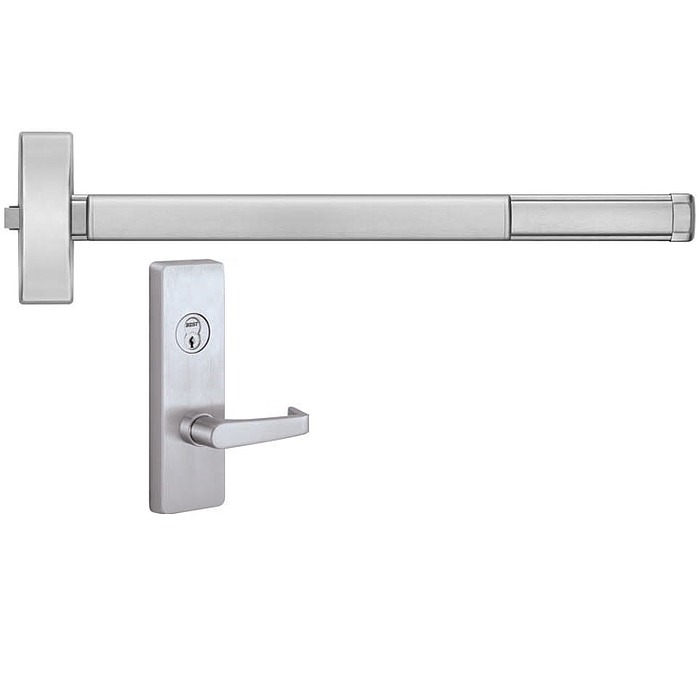

Apex 4ft Rim Exit Device with Keyed Lever Trim

Quick Product Details

  • Rim Exit Device
  • Device Length 4ft
  • Keyed Lever Function
  • Heavy Duty
Price: $1,807.00 /each

SKU: 2108-V4908A-4FT

Choose Options Below

This Precision 2108-V908A-4FT is a keyed lever function rim exit device. Its 4 foot length is designed to fit doors between 3 feet and 1 inch to 4 feet. This exit device is non-handed, however, the lever trim supplied with it is handed.

  • Stock Item
  • Order in the next 33 hours 27 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,807.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630-Satin Stainless Steel 630-Satin Stainless Steel

Choose Handing:

Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Quality and Safety:
  • UL listed for panic hardware
  • Certified to ANSI A156.3 Grade 1
  • Levers comply with ADA, Americans with Disabilities Act
  • 5 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Right Hand Reverse (RHR)

Product at A Glance

  • Package includes a lever and an escutcheon
  • Rim cylinder required (not included)
  • Vandal resistant trim - a heavy duty lever trim designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing “overload” springs and heavy duty cast stainless steel internal components
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4” beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Rim exit device
Grade Heavy duty
Application Single and double doors with mullion
Function Keyed Lever:
- Key locks/unlocks lever
Handing - Device is non-handed
- Lever trim is handed, field reversible
Door Thickness 1-3.4"
Door Width 3'1" to 4'0"
Device Length 4'
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"

More Info


The Apex series of rim exit devices from Precision Hardware has proven itself by flawlessly serving customers with a variety of application specifications. This 2108-V4908-4FT is a rim exit device supplied with the keyed lever trim. This device measures four feet and will fit doors that measure between 3’1” and 4’.
