Precision Hardware 2108-V4908A-605

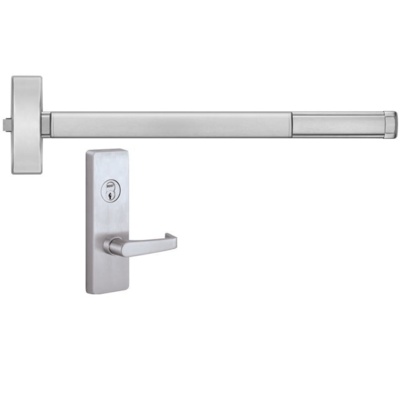

Special Order Apex Rim Exit Device with Keyed Lever Trim

Quick Product Details

  • Rim Exit Device
  • Keyed Lever Function
  • Heavy Duty
  • Polished Brass Finish
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2108-V4908A-605

Choose Options Below

This Precision 2108-V908A Apex rim exit device is operated with the keyed-lever function. Rotate the key to lock or unlock the lever. Precision hardware warrants their product for five years against defect.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

30" Rail Size
36" Rail Size

Help Me Decide

30" Rail  for 2'-0" to 2'-6" wide doors

36" Rail for 2’-7” to 3’-0” wide doors

Choose Finish:

605-Polished Brass 605-Polished Brass

Overview

Special order non stock item with 4 week lead time
Quality and Safety:
  • UL listed for panic hardware
  • Certified to ANSI A156.3 Grade 1
  • Levers comply with ADA, Americans with Disabilities Act
  • 5 year limited warranty

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
  • Rail Size: info icon

    • 30" Rail Size
    • 36" Rail Size
  • Finish:

Product at A Glance

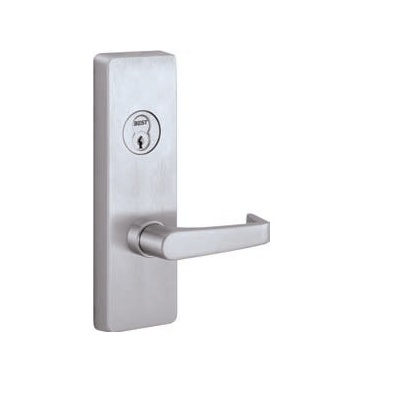

  • Package includes a lever and an escutcheon
  • Rim cylinder required (not included)
  • Vandal resistant trima heavy duty lever trim designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing “overload” springs and heavy duty cast stainless steel internal components
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4” beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Rim exit device
Grade Heavy duty
Application Single and double doors with mullion
Function Keyed Lever:
- Key locks/unlocks lever
Handing - Device is non-handed
- Lever trim is handed
Door Thickness 1-3/4"
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"

More Info


Precision Hardware Apex series rim exit devices are for single doors and double doors with a mullion in heavy duty applications. The touchbar mounts 39-15/16” from the floor which is the standard height for easy reach for the average person.
