Precision Hardware 2203-1703A-630

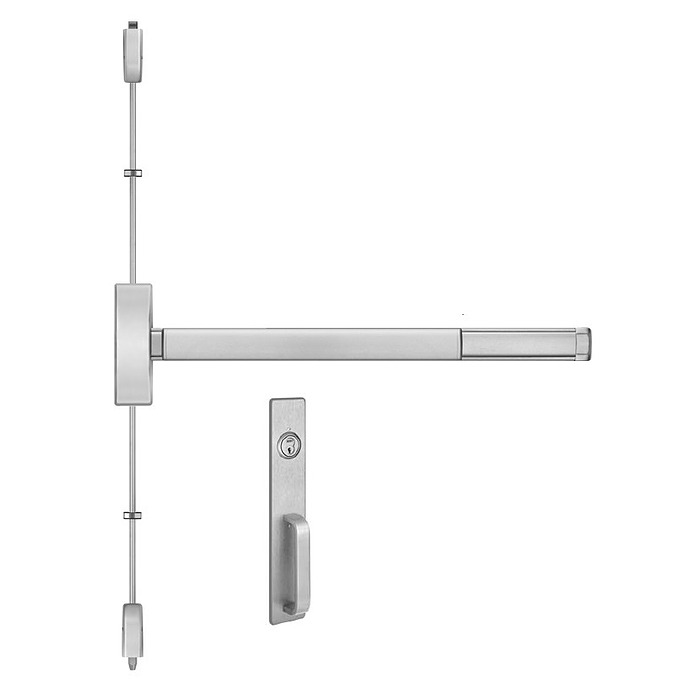

Apex Surface Vertical Rod Exit Device with Night Latch Escutcheon and Pull Trim

Quick Product Details

  • Vertical Rod Exit Device
  • Night Latch Function With Lever Trim
  • Surface Mounted
Price: $2,233.00 /each

SKU: 2203-1703A-630

Choose Options Below

This Precision 2203-1703A-630 Apex surface vertical rod exit device is a highly recommended, very popular device. It is night-latch function set and therefore requires a rim cylinder. Includes a 1703A lever and escutcheon.

  • Stock Item
  • Order in the next 21 hours 27 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $2,233.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $15.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$15.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview


Quality and Safety:
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1
  • Levers comply with ADA, Americans with Disabilities Act requirements
  • 5 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Package includes 1703A lever and escutcheon
  • Night latch function requires a rim cylinder
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4" beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Vertical Rod exit device
Application Single and double doors with mullion
Function Night-Latch with Lever:
- Key retracts latch and door remains locked
Handing Non-handed
Dogging Feature Hex Key dogging standard
Door Width 3'0"
Door Height 7'0"
Door Thickness 1-3/4"
Strike -Top Strike: S300, stainless steel, black powder coated (standard)
- Bottom Strike: S460 flush mounted, steel, black powder coated
Latch Bolt -Top Latch bolt: Stainless steel deadlocking - 3/4" throw
- Bottom Latch bolt: steel plated, independent action 5/8"" throw, with adjustment range to suit 3/4" door undercut
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"
Escutcheon Size 15" high x 2-3/4" wide

More Info


The Apex series of exit devices is widely favored as a quality device that will provide for utmost satisfaction. This surface vertical rod device is for doors that are three feet wide and seven feet tall with a thickness of 1-3/4”. A lever and escutcheon is supplied with this package to enable access from the outside as well.
