Precision Hardware 2203-4903A-630

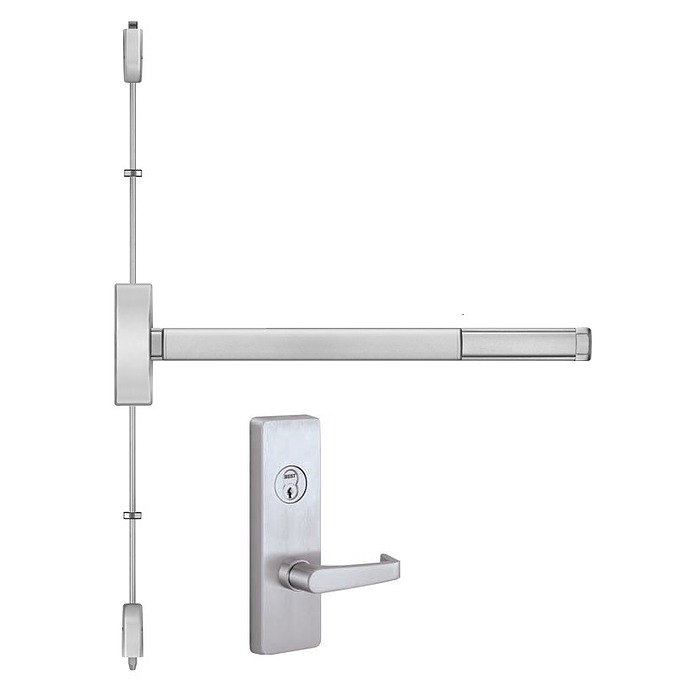

Apex Surface Vertical Rod Exit Device with Night Latch Lever Trim

Quick Product Details

  • Vertical Rod Exit Device
  • Night Latch Function With Lever Trim
  • Surface Mounted
SKU: 2203-4903A-630

Price: $1,517.00

Choose Options Below

This Precision 2203-4903-630 Apex surface vertical rod exit device operates with the night latch function which requires the use of a rim cylinder. Rotating a key in the cylinder will retract the latchbolt but the door will stay locked. See more product information below

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,517.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Help Me Decide

Choose Finish:

Overview


Quality an Safety:
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1
  • Levers comply with ADA, Americans with Disabilities Act requirements
  • 5 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Package includes 4903A lever and escutcheon
  • Night latch function requires a rim cylinder,
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4"  beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Vertical Rod exit device
Application Single and double doors with mullion
Function Night-Latch with Lever:
- Key retracts latch and door remains locked
Handing - Device is non-handed
- Lever trim is handed
Dogging Feature Hex Key dogging standard
Door Width 3'0"
Door Height 7'0"
Door Thickness 1-3/4"
Strike - Top Strike: S300, stainless steel, black powder coated (standard)
- Bottom Strike: S460 flush mounted, steel, black powder coated
Latch Bolt - Top Latch bolt: Stainless steel deadlocking - 3/4" throw
- Bottom Latch bolt: steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"

This terrific vertical rod exit device is for heavy duty application on single or double doors with a mullion. It is supplied with the night-latch function with a lever which will allow a key to retract the latch from the outside while the door will remains locked. To properly install this device, a stile with minimum width of 4-1/2” is required.
